Florida RF Labs

Microwave Component Catalog

A comprehensive overview of EMC Technology and Florida RF Labs Microwave Components including: Thermopads, Fixed Attenuators, Terminations, Resistors, Diamond RF Resistives, Hybrid and Directional Couplers.

High Performance RF Cable Assemblies

Florida RF cable assemblies offer cost effective solutions to 50GHz. Whether semi-rigid, conformable or flexible assemblies are needed, Florida RF has the right cable and the right connectors for your project. High performance test cables are extremely rugged and precise. Need a custom assembly? Custom assemblies are a specialty and Florida RF lead times are the shortest in the industry. If you need one or a hundred; for commercial, military or space applications, there's a Florida RF cable that meets your needs. See the brochures for cable details and connector options.

Florida RF Test Cables	Florida RF Cable Assemblies	Cable Assembly Overview

Introducing the Doupler^TM

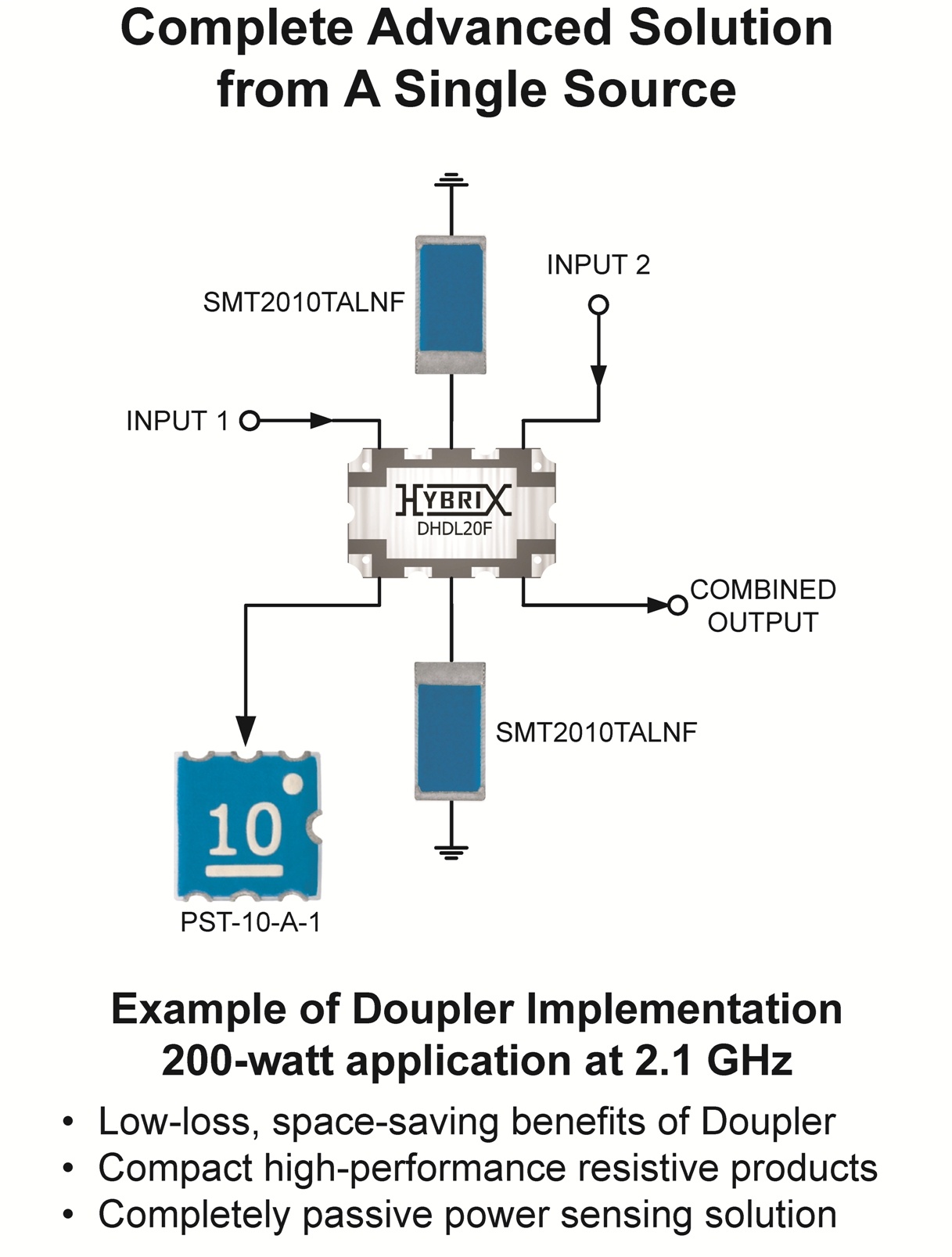

Florida RF has combined the performance of two products into one, unique device. The Doupler^TM combines a hybrid coupler and a 20dB directional coupler into a single package. You get half the insertion loss of a two device implementation in half the board space. Here's a standard Doupler^TM application diagram.

Click on the image for a larger view

For more information, see the Doupler^TM Brochure or contact your local RFMW sales person.

Temperature Variable Attenuators for Commercial Applications

EMC Technolgy temperature variable attenuators offer design flexibility by using the same footprint as EMC surface mount fixed attenuators. Input power from 100mW to 2W. Design kits are available.

New Product Recommendation Chart

Having a tough time tracking down the parts you need? Take a look at the latest products separated by product type and application. You're sure to find what you need on the Product Recommendation Chart

Florida RF Labs / EMC Introduces LTCC Couplers

New Hybrix3 couplers provide expanded frequency coverage and broadband support to 6GHz.

View the selection guide of Hybrid and Directional Couplers

Do you need a Termination for use with your coupler?
See the factory suggestions on this Application Note.

Florida RF Labs / EMC High Frequency Chip Attenuator Series

Expanding the frequency range of temperature variable and fixed attenuators, EMC introduces the QTVA and QFA series of attenuators with frequency response from 36 to 50GHz.

View the overview

KFA Chip Attenuator Series

Designed with the KTVA footprint in mind, this component offers a flat attenuation from 16-36GHz. The KFA chip attenuator can handle 250mW and is available in 1-10dB with an operating temperature from -55 to +150 degrees celsius.

View the KFA Series data sheet.

For Hi-Rel applications, view the HRKFA data sheet.

Mounting Instructions for Wrapped Chip Devices Application Note #006

EMC Technology / Florida RF "Primer"

The "Primer" includes information on:

• High Power Resistor Components
• Temperature Compensating Resistor Components
• Signal Processing Components
• RF & Microwave Cable Assemblies
• Passive Integration

>Download Primer as a PDF file
