RFMD Home Page

RFMD is the premier supplier of high-performance radio systems and solutions — enabling wireless connectivity. Providing the world's leading wireless manufacturers the critical components that enable wireless devices to transmit and receive signals, RFMD’s products include Amplifiers, Gainblocks, Mixers, VCO's, PLL's, Power Dividers, Low Noise Transistors, Medium Power Transistors, Power Amplifiers, Medium Power Amplifiers, High Power Amplifiers, Modulators, Transformers and CATV products.

RFMD Part Search

RFMD

RFMD Introduces Wide-Band GaAs MMIC Distributed Amplifiers to 35GHz

Download the Brochure (0.5MB File)


RFMD Expands their RF Passive Offering for CATV Applications and More

For an overview, see their current Ad (0.5MB File)

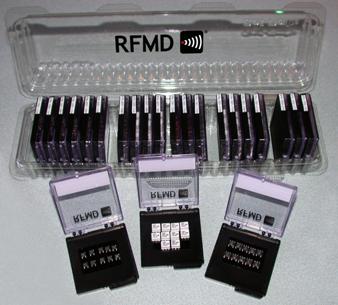

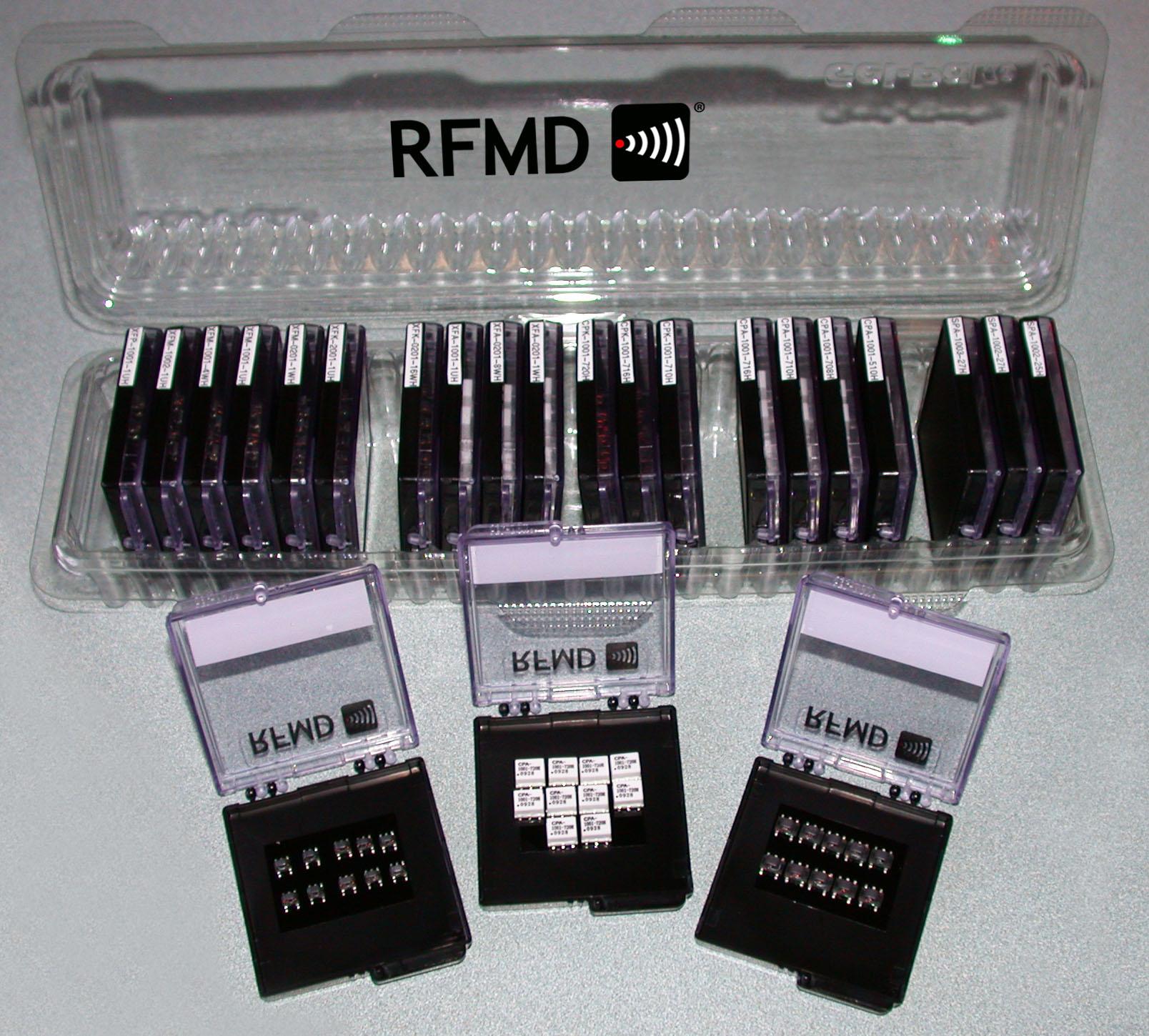

RFMD Passive Components Kit The DKDS1000 sample kit includes 23 RFMD passive products (3 splitters, 8 couplers and 12 transformers) in frequency ranges from 150 MHz to 1 GHz. It provides a wide selection of RF passive components for Broadband/CATV equipment design engineers to choose from during their evaluation, design, and prototype stages.
DKDS1000
Passive Components Kit.

Related Parts
CPA-1001-510H (10dB SMT COUPLER)
CPA-1001-708H (8dB SMT COUPLER)
CPA-1001-710H (10dB SMT COUPLER)
CPA-1001-716H (16dB SMT COUPLER
CPA-1001-720H (20dB SMT COUPLER)
CPK-1001-710H (10dB SMT COUPLER)
CPK-1001-716H (16dB SMT COUPLER)
CPK-1001-720H (20dB SMT COUPLER)
SPA-1002-25H (2-WAY SMT SPLITTER)
SPA-1002-27H (2-WAY SMT SPLITTER)
SPA-1003-27H (2-WAY SMT SPLITTER)
XFA-0201-1WH (1:1 SMT TRANSFORMER)
XFA-0201-8WH (1:8 SMT TRANSFORMER)
XFA-1001-1UH (1:1 SMT TRANSFORMER)
XFK-0201-16WH (1:16 SMT TRANSFORMER)
XFK-1001-1UH (1:1 SMT TRANSFORMER)
XFK-2001-1UH (1:1 SMT TRANSFORMER)
XFM-0201-1WH (1:1 SMT TRANSFORMER)
XFM-1001-1UH (1:1 SMT TRANSFORMER)
XFM-1001-4WH (1:4 SMT TRANSFORMER)
XFM-1002-1UH (1:1 SMT TRANSFORMER)
XFP-1001-1UH (1:1 SMT TRANSFORMER)
XFP-1001-4WH (1:4 SMT TRANSFORMER)

RFMD DKDS1000 RF Passive Designers Contents .pdf


2010 RFMD Product Selection Guide

RFMD Selector Guide 2010

Click here to download. (7MB File)


RFMD Integrated RF Synthesizer and VCO with Mixers for RF Front Ends

Designed to reduce the development time, risk and solution size of RF front end circuits in modern radios, the RF205x family of products from RFMD provides a highly integrated, yet flexible solution. These devices use a unique system partitioning-a vertical slice through an RF section-that combines a high-performance fractional-N PLL, low phase noise VCOs, LO buffers and high-linearity RF mixers.

RF205X Brochure (1MB)
RF250X Family Application Note: Matching Circuits and Baluns
RF205X Frequency Synthesizer User Guide
White Paper: A New Level of Integration in RF Components Article


RFMD GaN Amp information


Next-Generation, GaN-based Power Amplifiers for Radar Applications

Published in the Jan, 2009 issue of Microwave Product Digest, this article covers advancements in Radar technology and compares various amplifier technologies. It highlights the RF3928, 300W S-Band amplifier and future developoment of 500W L-band devices.
