Diamond RF Resistives®

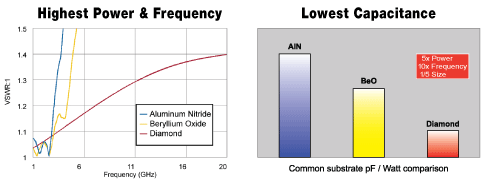

		Diamond is the best thermal conductor on earth. Combined with a low dielectric constant, it is an excellent RF dielectric material for high-frequency applications in which thermal performance is equally critical. By applying cutting-edge thin film process and extensive millimeter wave design experience, EMC Technology has created a high-performance line of resistive components. The resulting products, Diamond RF Resistives® resistors, terminations, and attenuators, are significantly reduced in size and unparalleled in average and peak power handling.

DC - 26.5GHz  20W	DC - 30GHz  125W		DC - 28GHz  150W
Diamond Attenuators Part Number Maximum Frequency Attenuation Value Power Handling Maximum VSWR CA0505D,01 26.5 GHz 1 dB 20 Watts 1.5:1 CA0505D,02 26.5 GHz 2 dB 20 Watts 1.5:1 CA0505D,03 26.5 GHz 3 dB 20 Watts 1.5:1 CA0505D,04 26.5 GHz 4 dB 20 Watts 1.5:1 CA0505D,05 26.5 GHz 5 dB 20 Watts 1.5:1 CA0505D,06 26.5 GHz 6 dB 20 Watts 1.5:1 CA0505D,07 26.5 GHz 7 dB 20 Watts 1.5:1 CA0505D,10 26.5 GHz 10 dB 20 Watts 1.5:1 CA0505D,01TB 18 GHz 1 dB 20 Watts 1.5:1 CA0505D,02TB 18 GHz 2 dB 20 Watts 1.5:1 CA0505D,20T 26.5 GHz 20 dB 20 Watts 1.5:1
Diamond Resistors Part Number Maximum Frequency Resistive Value Power Handling Capacitance Tolerance Package CR0402D 100,5 30 GHz 100 Ohms 20 Watts 0.09 pF +/-5% Chip CR0402D 50,5 30 GHz 50 Ohms 20 Watts 0.09 pF +/-5% Chip CR0402D100,5W2 18 GHz 100 Ohms 1.5 Watts 0.1 pF +/-5% Chip - Wrapped CR0402D50,5W2 18 GHz 50 Ohms 1.5 Watts 0.1 pF +/-5% Chip - Wrapped CR0505D 50,5 18 GHz 50 Ohms 50 Watts 0.1 pF +/-5% Chip CR0505D 100,5 18 GHz 100 Ohms 50 Watts 0.1 pF +/-5% Chip CR0505D 100,5TB 18 GHz 100 Ohms 50 Watts 0.1 pF +/-5% Bent Tab CR0603D 100,5 18 GHz 100 Ohms 80 Watts 0.19 pF +/-5% Chip CR0603D 50,5 18 GHz 50 Ohms 80 Watts 0.19 pF +/-5% Chip CR0603D50,5W2 18 GHz 50 Ohms 2 Watts 0.2 pF +/-5% Chip - Wrapped CR0603D150,5W2 18 GHz 150 Ohms 2 Watts 0.2 pF +/-5% Chip - Wrapped CR0603D240,5W2 18 GHz 240 Ohms 2 Watts 0.2 pF +/-5% Chip - Wrapped
Diamond Terminations Part Number Maximum Frequency Power Handling Maximum VSWR Package CT0402D 26.5 GHz 10 Watts 1.35:1 Chip CT0505D 20 GHz 50 Watts 1.6:1 Chip CT0603D 28 GHz 50 Watts 1.6:1 Chip CT0603DW2 18 GHz 30 Watts 1.6:1 Chip CT1310D 14 GHz 150 Watts 1.6:1 Chip CT1310DHT 20 GHz 125 Watts 1.5:1 Flange CT1310DT 14 GHz 150 Watts 1.6:1 Chip CT2010D 12 GHz 300 Watts 1.4:1 Chip
