Renesas
|
More Info
| 1 | $2.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
The F1129 family is a series of single-ended input / differential output 1400MHz to 6000MHz high gain RF amplifiers. The F1129 series is designed to operate with a single 5V power supply using a nominal 70mA of ICC. When using a supply voltage of 5V, the F1129 variant provides 18dB typical gain with 2.2dB noise figure and +32dBm OIP3 at 3600MHz.
Specifications
- Part Number:F1129MB
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
|
|
200 In Stock |
| 1 | $2.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
|
|
Amplifiers |
|
|
|
|
|
|
|
|
|
|
|
|
Renesas
|
More Info
The F6923 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku-Band planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation.
An externally supplied reference bias current is used to trade LNA power consumption against P1dB and gain, completely shut off (idle) the amplifier during operation or for gain compensation versus temperature. The LNA is supplied in a compact 23-pin, 0.5mm pitch FCCSP (BGA) package with 50Ω matched single-ended RF inputs and outputs for ease of integration onto phased array antenna panels.
Specifications
- Part Number:F6923
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:14.4
- Frequency Max:17.3
- P1dB:-2
- Gain:19
|
|
3640 In Stock |
Submit Quote Request
|
|
Amplifiers |
14.4 |
17.3 |
-2 |
|
19 |
|
|
|
|
|
|
|
Renesas
|
More Info
| 1 | $4.20 | | 10 | $3.80 | | 100 | $3.32 | | 1000+ | $3.02 |
High Linearity, 0.5W RF Driver Amplifier - 400MHz to 4200MHz The F1471 is a high linearity RF Driver Amplifier designed to operate within the 400MHz to 4200MHz frequency band. Utilizing a single 5V power supply and only 130mA of ICQ, the F1471 provides 17dB of gain and +28.5dBm OP1dB. The F1471 is packaged in a 3 × 3 mm, 16-VFQFPN package, with matched 50Ω input and output impedances for ease of integration into the signal path. Features RF range: 400MHz to 4200MHz
17dB typical gain
+28.5dBm OP1dB
5V power supply
Adjustable DC Bias
Bias control compatible for 3.3V and 5V operation
50Ω single-ended input and output impedances
Standby mode for power savings
Internal DC overvoltage protection
Internal RF overdrive protection
On-Chip ESD protection
Operating temperature (TEP) range: -40°C to +115°C
3 × 3 mm, 16-VFQFPN package
Specifications
- Part Number:F1471
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
|
|
100 In Stock |
| 1 | $4.20 | | 10 | $3.80 | | 100 | $3.32 | | 1000+ | $3.02 |
|
|
Amplifiers |
|
|
|
|
|
|
|
|
|
|
|
|
Renesas
|
More Info
| 1 | $4.20 | | 25 | $4.08 | | 50 | $4.03 | | 100 | $3.92 |
The F1490 is a high-gain, two-stage RF Amplifier designed to operate within the 1.8GHz to 5.0GHz frequency range. Using a single 5V power supply, the F1490 provides two selectable gain modes (35.5dB and 39.5dB), 2.5dB of Noise Figure and 24dBm OP1dB at 2.6GHz. The F1490 is packaged in a 3 × 3 mm, 16-VFQFPN package, with matched 50Ω input and output impedances for ease of integration into the signal path. Features - RF range: 1800MHz to 5000MHz
- 35.5dB typical gain at 2600MHz in low-gain mode
- 39.5dB typical gain at 2600MHz in high-gain mode
- 2.5dB NF at 2600MHz
- 50Ω single-ended input and output impedances
- 5V power supply
- 75mA quiescent current consumption
- 1.8V Logic compatible Standby Mode for power savings
- Operating temperature (TEPAD) range: -40°C to +115°C
- 3 × 3 mm 16-VFQFPN package
Specifications
- Part Number:F1490
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.8
- Frequency Max:5
- P1dB:24
- Gain:40
- Supply Voltage \ Vd Max:5
- Noise Figure:2.5
|
|
574 In Stock |
| 1 | $4.20 | | 25 | $4.08 | | 50 | $4.03 | | 100 | $3.92 |
|
|
Amplifiers |
1.8 |
5 |
24 |
|
40 |
|
|
5 |
2.5 |
|
|
|
Renesas
|
More Info
| 1 | $9.67 | | 10 | $8.92 | | 25 | $8.29 | | 50 | $7.95 |
Dual-Channel Low Noise Amplifier for Ku-Band SATCOM The F6921 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku-Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation. An externally supplied reference bias current is used to trade LNA power consumption against P1dB and gain, completely shut off (idle) the amplifier during operation or for gain compensation versus temperature. The LNA is supplied in a compact 23-pin, 0.5mm pitch FCCSP (BGA) package with 50Ω matched single-ended RF inputs and outputs for ease of integration onto phased array antenna panels. Features - 10.7–12.75 GHz operation
- Two independent gain/phase-matched channels
- 19dB typical gain
- -5dBm typical output P1dB
- 1V nominal single supply input
- 15mW DC power consumption
- 2.7 × 2.7 × 0.9 mm 23-pin FCCSP (BGA) package
Specifications
- Part Number:F6921
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:10.7
- Frequency Max:12.75
- P1dB:-5
- Gain:19
|
|
214 In Stock |
| 1 | $9.67 | | 10 | $8.92 | | 25 | $8.29 | | 50 | $7.95 |
|
|
Amplifiers |
10.7 |
12.75 |
-5 |
|
19 |
|
|
|
|
|
|
|
Renesas
|
More Info
| 1 | $4.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
Differential Input, Single-ended Output High Gain RF Amplifier The F1429 family is a series of differential input / single-ended output 1400MHz to 6000MHz high gain RF amplifiers. The F1429 series is designed to operate with a single 5V power supply using a nominal 70mA of ICC. When using a supply voltage of 5V, the F1429 variant provides 18dB typical gain with 4dB noise figure and +35dBm OIP3 at 3600MHz. Features - RF range: 1400MHz to 6000MHz
- F1429LB Variants: 1400MHz to 3200MHz
- F1429MB Variants: 3000MHz to 4200MHz
- F1429HB Variants: 4000MHz to 6000MHz
- Gain = 18dB at 3600MHz
- Noise figure = 4dB at 3600MHz
- OIP3 = +35dBm at 3600MHz
- Output P1dB = +18dBm at 3600MHz
- ICC = 70mA at 5V
- 2mA standby current
- 50Ω single-ended output impedances
- 100Ω differential input impedances
Specifications
- Part Number:F1429MB
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:3
- Frequency Max:4.2
- P1dB:21
- Gain:21
- IP3:40
- Supply Voltage \ Vd Min:3.3
- Supply Voltage \ Vd Max:5
- Package:QFN 2x2mm
|
|
200 In Stock |
| 1 | $4.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
|
|
Amplifiers |
3 |
4.2 |
21 |
|
21 |
40 |
3.3 |
5 |
|
|
|
|
Renesas
|
More Info
| 1 | $9.67 | | 10 | $8.92 | | 25 | $8.29 | | 50 | $7.95 |
Dual-Channel Low Noise Amplifier for Ka-Band SATCOM The F6922 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ka-Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation. An externally supplied reference bias current is used to trade LNA power consumption against P1dB and gain, completely shut off (idle) the amplifier during operation or for gain compensation versus temperature. The LNA is supplied in a compact 23-pin, 0.5mm pitch FCCSP (BGA) package with 50Ω matched single-ended RF inputs and outputs for ease of integration onto phased array antenna panels.
Specifications
- Part Number:F6922
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:17.7
- Frequency Max:21.2
- P1dB:-3
- Gain:19
- Quiescent Current \ Id:20
|
|
585 In Stock |
| 1 | $9.67 | | 10 | $8.92 | | 25 | $8.29 | | 50 | $7.95 |
|
|
Amplifiers |
17.7 |
21.2 |
-3 |
|
19 |
|
|
|
|
|
|
|
Renesas
|
More Info
| 1 | $4.80 | | 10 | $4.34 | | 100 | $3.88 | | 1000+ | $3.32 |
The IDT F1421 is a high gain/high linearity RF amplifier used in high-performance RF applications. The F1421 provides 20.3dB gain with a +40dBm OIP3 and 5.5dB noise figure at 1.9GHz. This device uses a single 5V supply and 138mA of ICC. In typical base stations, RF amplifiers are used in the RX and TX traffic paths to boost signal levels. The F1421amplifier offers very high reliability due to its construction using silicon die in a QFN package.
Specifications
- Part Number:F1421
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.7
- Frequency Max:2.2
- P1dB:23
- Gain:20.3
- IP3:40
- Supply Voltage \ Vd Max:5
- Quiescent Current \ Id:138
- Noise Figure:5.5
- Package:QFN 4x4mm
|
|
500 In Stock |
| 1 | $4.80 | | 10 | $4.34 | | 100 | $3.88 | | 1000+ | $3.32 |
|
|
Amplifiers |
1.7 |
2.2 |
23 |
|
20.3 |
40 |
|
5 |
5.5 |
|
|
|
Renesas
|
More Info
| 1 | $5.60 | | 10 | $4.90 | | 100 | $4.24 | | 1000+ | $3.56 |
The F0424 is a 600MHz to 4200MHz SiGe High-Gain Broadband RF Amplifier. The combination of low noise figure (NF) and high linearity performance allows the device to be used in both receiver and transmitter applications.
The F0424 is designed to operate with a single 5V or 3.3V power supply using a nominal 70mA of ICC. With a supply voltage of 5V, the F0424 provides 17.3dB gain with +40dBm OIP3 and 2.3dB noise figure at 2600MHz.
This device is packaged in a 2mm x 2mm, 8-pin Thin DFN with 50Ω single-ended RF input and output impedances for ease of integration into the signal-path.
Specifications
- Part Number:F0424
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.6
- Frequency Max:4.2
- P1dB:21
- Gain:18
- IP3:40
- Supply Voltage \ Vd Min:3.15
- Supply Voltage \ Vd Max:5.25
- Quiescent Current \ Id:70
- Noise Figure:2.2
- Package:DFN 2x2mm
|
|
100 In Stock |
| 1 | $5.60 | | 10 | $4.90 | | 100 | $4.24 | | 1000+ | $3.56 |
|
|
Amplifiers |
0.6 |
4.2 |
21 |
|
18 |
40 |
3.15 |
5.25 |
2.2 |
|
|
|
Renesas
|
More Info
| 1 | $6.93 | | 10 | $6.65 | | 100 | $6.22 | | 1000+ | $5.73 |
Broadband RF Analog VGA, 400MHz to 3000MHz The F2480 is a 400MHz to 3000MHz RF Analog Variable Gain Amplifier (AVGA) that can be used in receivers, transmitters and other applications. Either the amplifier or voltage variable attenuator (VVA) can be configured as the first stage in the cascade. The F2480 RF AVGA provides 12dB typical maximum cascade gain (no attenuation) with 4.3dB noise figure (amplifier as first stage) and 36dB gain adjustment designed to operate with a single +5V supply. Nominally, the Zero-Distortion™ amplifier offers +41.5dBm output IP3 using 106mA of ICC. This device is packaged in a 5 x 5 mm, 32-TQFN with 50Ω single-ended RF input and RF output impedances for ease of integration into the signal-path lineup. Features - 400MHz to 3000MHz (amplifier range)
- 50MHz to 6000MHz (attenuator range)
- 12dB typical cascaded max gain
- 36dB continuous gain range
- Excellent linearity +41.5dBm OIP3
- Noise figure 4.3dB
- ICC = 106mA, 1.2mA amplifier standby current
- Bi-directional attenuator RF ports
- Positive amplifier gain slope vs. frequency to counteract system PCB loss
- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic
- 4 RF port pinout supporting multiple lineup configurations
- 50Ω input and output impedances
- Broadband, internally matched
- 5 x 5 mm, 32-TQFN package
Specifications
- Part Number:F2480
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.4
- Frequency Max:3
- P1dB:19.5
- Gain:12
- IP3:41.5
- Supply Voltage \ Vd Min:4.75
- Supply Voltage \ Vd Max:5.25
- Quiescent Current \ Id:106
- Noise Figure:4.3
- Package:QFN 5x5mm
|
|
100 In Stock |
| 1 | $6.93 | | 10 | $6.65 | | 100 | $6.22 | | 1000+ | $5.73 |
|
|
Amplifiers |
0.4 |
3 |
19.5 |
|
12 |
41.5 |
4.75 |
5.25 |
4.3 |
|
|
|
Renesas
|
More Info
| 1 | $3.70 | | 10 | $3.50 | | 100 | $3.38 | | 1000+ | $3.22 |
Differential Input, Single-ended Output Amplifier The F1423 RF amplifier provides 13.1 dB gain with +41.8 dBm OIP3 and 5.1 dB noise figure at 2000 MHz. This device uses a single 5 V supply and 120 mA of ICC. The F1423 is packaged in a 4 x 4 mm, 24-VFQFPN package with 50 ohm differential RF input and 50 ohm single-ended RF output impedances for ease of integration into the signal-path. Features - Broadband 600 MHz – 3000 MHz
- 13.1 dB typical gain @ 2000 MHz
- 5.1 dB NF @ 2000 MHz
- +41.8 dBm OIP3 @ 2000 MHz
- +21.5 dBm output P1dB @ 2000 MHz
- Single 5 V supply voltage
- ICC = 120 mA
- Up to +105 °C TCASE operating temperature
- 50 Ω differential input impedance
- 50 Ω single ended output impedance
- Positive gain slope for board loss compensation
- Standby mode for power savings
Specifications
- Part Number:F1423
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.6
- Frequency Max:3
- P1dB:21.5
- Gain:13.1
- IP3:41.8
- Supply Voltage \ Vd Max:5
- Quiescent Current \ Id:120
- Noise Figure:5.1
- Package:QFN 4x4mm
|
|
100 In Stock |
| 1 | $3.70 | | 10 | $3.50 | | 100 | $3.38 | | 1000+ | $3.22 |
|
|
Amplifiers |
0.6 |
3 |
21.5 |
|
13.1 |
41.8 |
|
5 |
5.1 |
|
|
|
Renesas
|
More Info
| 1 | $5.80 | | 10 | $5.15 | | 100 | $4.31 | | 1000+ | $3.16 |
The IDT F1420 is a high gain / high linearity RF amplifier used in high-performance RF applications. The F1420 provides 17.4dB gain with +42dBm OIP3 and 4.5dB noise figure at 960MHz. This device uses a single 5V supply and 105mA of ICC. In typical base stations, RF amplifiers are used in the RX and TX traffic paths to boost signal levels. The F1420 amplifier offers very high reliability due to its onstruction using silicon die in a QFN package.
Specifications
- Part Number:F1420
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.7
- Frequency Max:1.1
- P1dB:23.2
- Gain:17.5
- IP3:42
- Supply Voltage \ Vd Max:5
- Quiescent Current \ Id:105
- Noise Figure:4.5
- Package:QFN 4x4mm
|
|
300 In Stock |
| 1 | $5.80 | | 10 | $5.15 | | 100 | $4.31 | | 1000+ | $3.16 |
|
|
Amplifiers |
0.7 |
1.1 |
23.2 |
|
17.5 |
42 |
|
5 |
4.5 |
|
|
|
Renesas
|
More Info
Amplifier, High Gain, 2.3 to 4.2GHz, 28dBm, 35.5dB, 3x3mm, 16 pin
Specifications
- Part Number:F1427
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:2.3
- Frequency Max:4.2
- P1dB:28
- Gain:35.5
- Supply Voltage \ Vd Min:4.75
- Supply Voltage \ Vd Max:5.25
- Quiescent Current \ Id:147
- Noise Figure:3.9
- P3dB:37
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
2.3 |
4.2 |
28 |
|
35.5 |
|
4.75 |
5.25 |
3.9 |
37 |
|
|
Renesas
|
More Info
Dual Path Ultra-Low Noise Amplifier - 2.5GHz to 2.7GHz The F0111 is a dual-path 2500MHz to 2700MHz High Gain / Ultra-Low Noise Amplifier used in receiver applications.
The F0111 LNA is operated as a balanced amplifier where the inputs and outputs are combined via external 90° couplers and provides 18dB of gain with 0.7dB noise figure.The device uses a single 5V supply and 120mA typical of total ICC.
The F0111 is packaged in a 4 x 4 mm, 16-pin VFQFPN with 50Ω single-ended RF input and output impedances for ease of integration into the signal path.
Features
- 2500MHz to 2700MHz operating range
- 18dB typical Gain
- 0.7dB typical NF
- 50Ω Single-ended Input/Output Impedances
- +5V power supply
- ICC = 60mA per Channel
- Independent Channel Standby Modes for Power Savings-
- 1.8V Logic Standby control
- Operating temperature (TEP) range: -40°C to +105°C
- 4 × 4 mm, 16-VFQFPN package
Specifications
- Part Number:F0111
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:2.3
- Frequency Max:4.2
- P1dB:23
- Gain:18
- IP3:38
- Supply Voltage \ Vd Max:5
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
2.3 |
4.2 |
23 |
|
18 |
38 |
|
5 |
|
|
|
|
Renesas
|
More Info
Dual Path Ultra-Low Noise Amplifier - 1.5GHz to 2.3GHz The F0110 is a dual path 1500MHz to 2300MHz High Gain / Ultra-Low Noise Amplifier used in receiver applications.
The F0110 LNA is operated as a balanced amplifier where the inputs and outputs are combined via external 90° couplers and provides 18dB of gain. The device uses a single 5V supply and 120mA typical of total ICC.
The F0110 is packaged in a 4 x 4 mm, 16-pin VFQFPN with 50Ω single-ended RF input and output impedances for ease of integration into the signal path.
Features
- 1500MHz to 2300MHz operating range
- 18.5dB typical gain
- Less than 0.6dB NF
- 50Ω single-ended input/output impedances
- +5V power supply
- CC = 55mA per channel
- Independent channel standby modes for power savings
- 1.8V logic standby control
- Operating temperature (TEP) range: -40°C to +105°C
- 4 × 4 mm, 16-VFQFPN package
Specifications
- Part Number:F0110
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.5
- Frequency Max:2.3
- P1dB:22
- Gain:18.5
- IP3:39
- Supply Voltage \ Vd Max:5
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
1.5 |
2.3 |
22 |
|
18.5 |
39 |
|
5 |
|
|
|
|
Renesas
|
More Info
Amplifier Medium Powe, 81GHz 86GHz, 21.5dBm, 19dB, 4.17x1.87mm, GaAs MMIC
Specifications
- Part Number:EXP8602-DNT
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:MMIC Amplifiers
- Frequency Min:81
- Frequency Max:86
- P1dB:21.5
- Gain:19
- IP3:32.5
- Supply Voltage \ Vd Min:4
- Quiescent Current \ Id:550
- P3dB:23
|
|
Submit Quote Request |
Submit Quote Request
|
|
MMIC Amplifiers |
81 |
86 |
21.5 |
|
19 |
32.5 |
4 |
|
|
23 |
|
|
Renesas
|
More Info
The F1495 is a high linearity RF Driver Amplifier designed to operate within the 3300MHz to 4200MHz frequency range. Using a single 5V power supply, the F1495 provides 40dB typical gain and 30dBm typical OP1dB with a low quiescent current consumption of 120mA. The F1495 is packaged in a 3 × 3 mm, 16-pin SMT package, with matched 50Ω input and output impedances for ease of integration into the signal path. Features - RF range: 3300MHz – 4200MHz
- 40dB typical
- +30dBm typical OP1dB
- 50Ω single-ended input and output impedances
- 5V power supply
- 120mA typical quiescent supply current
- 1.8V logic compatible Standby mode for power savings
- Operating temperature (TEPAD) range: -40°C to +115°C
- 3 × 3 mm 16-SMT package
Specifications
- Part Number:F1495
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:3.3
- Frequency Max:4.2
- P1dB:30
- Gain:40
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:120
- Noise Figure:40
- Package:SMT
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
3.3 |
4.2 |
30 |
|
40 |
|
5 |
|
40 |
|
|
|
Renesas
|
More Info
| 1 | $4.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
Single-ended Input, Differential Output High Gain RF Amplifier The F1129 family is a series of single-ended input / differential output 1400MHz to 6000MHz high gain RF amplifiers. The F1129 series is designed to operate with a single 5V power supply using a nominal 70mA of ICC. When using a supply voltage of 5V, the F1129 variant provides 18dB typical gain with 2.2dB noise figure and +32dBm OIP3 at 3600MHz. Features - RF range: 1400MHz to 6000MHz
- F1129LB Variants: 1400MHz to 3200MHz
- F1129MB Variants: 3000MHz to 4200MHz
- F1129HB Variants: 4000MHz to 6000MHz
- Gain = 18dB at 3600MHz
- Noise figure = 2.2dB at 3600MHz
- OIP3 = +32dBm at 3600MHz
- Output P1dB = +18dBm at 3600MHz
- ICC = 70mA at 5V
- 2mA standby current
- 50Ω single-ended input impedances
- 100Ω differential output impedances
Specifications
- Part Number:F1429LB
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.4
- Frequency Max:3.2
- P1dB:22
- Gain:21.5
- IP3:40
- Supply Voltage \ Vd Min:3.3
- Supply Voltage \ Vd Max:5
- Package:QFN 2x2mm
|
|
Submit Quote Request |
| 1 | $4.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
|
|
Amplifiers |
1.4 |
3.2 |
22 |
|
21.5 |
40 |
3.3 |
5 |
|
|
|
|
Renesas
|
More Info
| 1 | $4.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
The F1129 family is a series of single-ended input / differential output 1400MHz to 6000MHz high gain RF amplifiers. The F1129 series is designed to operate with a single 5V power supply using a nominal 70mA of ICC. When using a supply voltage of 5V, the F1129 variant provides 18dB typical gain with 2.2dB noise figure and +32dBm OIP3 at 3600MHz.
Specifications
- Part Number:F1129LB
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.4
- Frequency Max:3.2
- P1dB:20.5
- Gain:20
- IP3:36
- Supply Voltage \ Vd Min:3.3
- Supply Voltage \ Vd Max:5
- Package:QFN 2x2mm
|
|
Submit Quote Request |
| 1 | $4.20 | | 10 | $3.78 | | 100 | $3.40 | | 1000+ | $3.06 |
|
|
Amplifiers |
1.4 |
3.2 |
20.5 |
|
20 |
36 |
3.3 |
5 |
|
|
|
|
Renesas
|
More Info
Single-ended Input, Differential Output High Gain RF Amplifier The F1129 family is a series of single-ended input / differential output 1400MHz to 6000MHz high gain RF amplifiers. The F1129 series is designed to operate with a single 5V power supply using a nominal 70mA of ICC. When using a supply voltage of 5V, the F1129 variant provides 18dB typical gain with 2.2dB noise figure and +32dBm OIP3 at 3600MHz. Features - RF range: 1400MHz to 6000MHz
- F1129LB Variants: 1400MHz to 3200MHz
- F1129MB Variants: 3000MHz to 4200MHz
- F1129HB Variants: 4000MHz to 6000MHz
- Gain = 18dB at 3600MHz
- Noise figure = 2.2dB at 3600MHz
- OIP3 = +32dBm at 3600MHz
- Output P1dB = +18dBm at 3600MHz
- ICC = 70mA at 5V
- 2mA standby current
- 50Ω single-ended input impedances
- 100Ω differential output impedances
Specifications
- Part Number:F1129MBNELI8
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:3
- Frequency Max:4.2
- P1dB:18
- Gain:19
- IP3:32
- Supply Voltage \ Vd Min:3.3
- Supply Voltage \ Vd Max:5
- Package:QFN 2x2mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
3 |
4.2 |
18 |
|
19 |
32 |
3.3 |
5 |
|
|
|
|
Renesas
|
More Info
High Gain RF Amplifier 1.8GHz to 5.0GHz The F1490 is a high-gain, two-stage RF Amplifier designed to operate within the 1.8GHz to 5.0GHz frequency range. Using a single 5V power supply, the F1490 provides two selectable gain modes (35.5dB and 39.5dB), 2.5dB of Noise Figure and 24dBm OP1dB at 2.6GHz.
The F1490 is packaged in a 3 × 3 mm, 16-VFQFPN package, with matched 50Ω input and output impedances for ease of integration into the signal path Features - RF range: 1800MHz to 5000MHz
- 35.5dB typical gain at 2600MHz in low-gain mode
- 39.5dB typical gain at 2600MHz in high-gain mode
- 2.5dB NF at 2600MHz
- 5V power supply
- 75mA quiescent current consumption
- 1.8V Logic compatible Standby Mode for power savings
- Operating temperature (TEPAD) range: -40°C to +115°C
- 3 × 3 mm 16-VFQFPN package
- 50Ω single-ended input and output impedances
Specifications
- Part Number:F1490NLGA8
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.8
- Frequency Max:5
- P1dB:24
- IP3:38
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:75
- Package:QFN-16 3x3
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
1.8 |
5 |
24 |
|
|
38 |
5 |
|
|
|
|
|
Renesas
|
More Info
The F1478 is a high gain, two-stage RF Amplifier designed to operate within the 1800MHz to 5000MHz frequency range. Using a single 5V power supply and with low ICC, the F1478 provides 29.6dB of Gain (which can be optimized vs. bandwidth) and 1.8dB of Noise Figure. The F1478 realizes up to +37.3dBm OIP3 and 25.5dBm OP1dB at 3550MHz. The F1478 is packaged in a 3 × 3 mm, 16-VFQFPN, with matched 50Ω input and output impedances for ease of integration into the signal path. The silicon integration approach means that external BOM components are minimized for customer applications. Features - RF range: 1800MHz to 5000MHz
- 29.6dB typical gain at 3550MHz (can be optimized vs. bandwidth)
- 1.8dB NF at 3550MHz
- Adjustable OIP3 performance
- +37.3dBm OIP3 at 3550MHz and 140mA of bias current
- +33.8dBm OIP3 at 3550MHz and 100mA of bias current
- Adjustable OP1dB Performance
- +25.5dBm OP1dB at 3550MHz and 140mA of bias current
- +24.5dBm OP1dB at 3550MHz and 100mA of bias current
- 5V power supply
- Adjustable ICC ranging from 80mA to 160mA
- 50Ω single-ended input and output impedances
- 1.8V Logic compatible standby mode for power savings
- Operating temperature (TEPAD) range: -40°C to +115°C
- 3 × 3 mm 16-VFQFPN package
Specifications
- Part Number:F1478NLGA8
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.8
- Frequency Max:5
- P1dB:23.6
- Gain:30.3
- IP3:35.7
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:140
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
1.8 |
5 |
23.6 |
|
30.3 |
35.7 |
5 |
|
|
|
|
|
Renesas
|
More Info
The F1478 is a high gain, two-stage RF Amplifier designed to operate within the 1800MHz to 5000MHz frequency range. Using a single 5V power supply and with low ICC, the F1478 provides 29.6dB of Gain (which can be optimized vs. bandwidth) and 1.8dB of Noise Figure. The F1478 realizes up to +37.3dBm OIP3 and 25.5dBm OP1dB at 3550MHz. The F1478 is packaged in a 3 × 3 mm, 16-VFQFPN, with matched 50Ω input and output impedances for ease of integration into the signal path. The silicon integration approach means that external BOM components are minimized for customer applications.
Specifications
- Part Number:F1478NLGA
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
|
|
|
|
|
|
|
|
|
|
|
|
Renesas
|
More Info

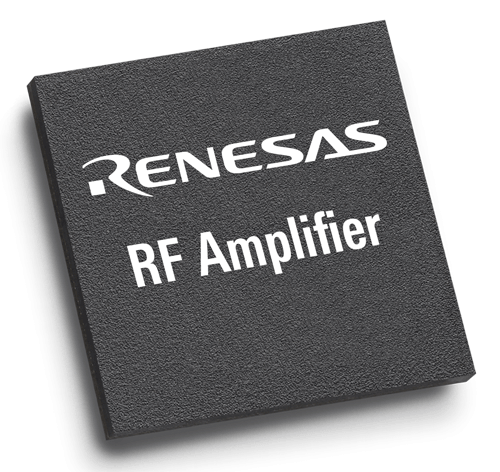

The F1476 is a high linearity RF Driver Amplifier designed to operate within the 3000MHz to 5000MHz frequency range. Using a single 5V power supply, the F1476 provides 18dB typical gain and 30dBm typical OP1dB with a low quiescent current consumption of 180mA. -
- Frequency range: 3000MHz to 5000MHz
- TBD typical gain at 2100MHz
- +30dBm typical OP1dB at 2100MHz
- 50Ω Single-ended input and output impedances
- 5V power supply
- 180mA typical quiescent supply current
- 1.8V logic compatible standby mode for power savings
- Operating temperature (TEPAD) range: -40°C to +115°C
- 4 × 4 mm 20-VFQFPN package
Specifications
- Part Number:F1476
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:3
- Frequency Max:5
- Psat:30
- Gain:18
- IP3:43
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:120
- Noise Figure:6
- Package:QFN 4x4mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
3 |
5 |
|
30 |
18 |
43 |
5 |
|
6 |
|
|
|
Renesas
|
More Info
1/2W PRE-DRIVER AMPLIFIER Excellent linearity maintained over large bandwidths
OIP3 linearity configurable with bias current adjustments
Exceptional OP1dB performance maintained at low bias currents
Includes on chip DC over voltage and RF over drive protection
Pin to pin compatible drop in replacement with competitor Tuning range: 400
4200 MHz (2.6GHz)
•17dB Gain
•28.5dBm OP1dB
•39dBm OIP3
•5V/130mA operation
•Adjustable DC Bias
•Bias control compatible for 3.3V and 5V operation.
•50 Ω Single ended Input and Output Impedances
•Standby Mode for Power Savings
•Internal DC Overvoltage Protection
Specifications
- Part Number:F1474
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.5
- Frequency Max:1
- P1dB:30
- Gain:18
- IP3:43
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:120
- Package:QFN 4x4mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
0.5 |
1 |
30 |
|
18 |
43 |
5 |
|
|
|
|
|
Renesas
|
More Info
The F1475 is a high linearity RF Driver Amplifier designed to operate within the 1350MHz to 2800MHz frequency range. Using a single 5V power supply, the F1475 provides TBD typical gain and 30dBm typical OP1dB with a low quiescent current consumption of 180mA. The F1475 is packaged in a 4 × 4 mm, 20-VFQFPN package, with matched 50Ω input and output impedances for ease of integration into the signal path. - Frequency range: 1350MHz to 2800MHz
- TBD typical gain at 2100MHz
- +30dBm typical OP1dB at 2100MHz
- 50Ω Single-ended input and output impedances
- 5V power supply
- 180mA typical quiescent supply current
- 1.8V logic compatible standby mode for power savings
- Operating temperature (TEPAD) range: -40°C to +115°C
- 4 × 4 mm 20-VFQFPN package
Specifications
- Part Number:F1475
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.35
- Frequency Max:2.8
- P1dB:30
- Gain:18
- IP3:43
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:120
- Package:QFN 4x4mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
1.35 |
2.8 |
30 |
|
18 |
43 |
5 |
|
|
|
|
|
Renesas
|
More Info
1/2W HIGH GAIN PRE-DRIVER AMPLIFIER High Gain and Linearity with Wide Bandwidth
Excellent for both FDD/TDD 5G Sub 6GHz applications
Low power TDD switching Standby mode feature • Frequency Band :
1800MHz – 4200MHz
• 5V supply with ICQ = 120mA
• 36.5dB Gain at 2.6GHz
• P1dB = 28dBm@2.6GHz
• OIP3 = 33dBm
• ACPR:
44dBc@2.6GHz
BW=100MHz, PAR=9.5dB, Pout=15dBm
• Up to +115C TCB operating temp
• 50Ω single end input/output impedance
• 3x3mm QFN 16pin. Fully compatible with F1485
Specifications
- Part Number:F1485L
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:1.8
- Frequency Max:4.2
- P1dB:28
- Gain:36.5
- IP3:33
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:120
- Package:QFN-16 3x3
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
1.8 |
4.2 |
28 |
|
36.5 |
33 |
5 |
|
|
|
|
|
Renesas
|
More Info
1/2W HIGH GAIN PRE-DRIVER AMPLIFIER High Gain and Linearity with Wide Bandwidth
Excellent for both FDD/TDD 5G Sub 6GHz applications
Low power TDD switching Standby mode feature • Frequency Band :
2300MHz – 5000MHz
• 5V supply with ICQ = 120mA
• 36dB Gain at 3.5GHz
• P1dB = 28dBm@3.5GHz;
• OIP3 = 33dBm
• ACPR:
43dBc @ 3.5GHz
BW=100MHz, PAR=8.5dB, Pout=15dBm
• Up to +115C TCB operating temp
• 50Ω single end input/output impedance
• 3x3mm QFN 16pin. Fully compatible with F1485L
Specifications
- Part Number:F1485
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:2.3
- Frequency Max:5
- P1dB:28
- Gain:36
- IP3:33
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:120
- Package:QFN 3x3mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
2.3 |
5 |
28 |
|
36 |
33 |
5 |
|
|
|
|
|
Renesas
|
More Info
The F0109 is a dual path 650MHz to 1GHz High Gain / Ultra-Low Noise amplifier used in receiver applications. The F0109 LNA is operated as a balanced amplifier where the inputs and outputs are combined via external 90° couplers and provides 18dB of gain. The device uses a single 5V supply and 120mA typical of total ICC. The F0109 is packaged in a 4 x 4 mm, 16-pin VFQFPN with 50Ω single-ended RF input and output impedances for ease of integration into the signal path. - 650MHz to 1GHz operating range
- 18dB typical Gain
- Less than 0.6dB NF
- 50Ω single-ended input/output impedances
- +5V power supply
- ICC = 60mA per channel
- Independent channel standby modes for power savings
- 1.8V Logic standby control
- Operating temperature (TEP) range: -40°C to +105°C
- 4 x 4 mm, 16-VFQFPN package
Specifications
- Part Number:F0109
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.65
- Frequency Max:1
- P1dB:24.5
- Gain:18
- IP3:41
- Supply Voltage \ Vd Min:5
- Quiescent Current \ Id:120
- Package:4 X 4mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
0.65 |
1 |
24.5 |
|
18 |
41 |
5 |
|
|
|
|
|
Renesas
|
More Info
Amplifier, Variable Gain, 10 to 500 MHz, 20.4 dBm, 20.2 dB, 5x5mm
Specifications
- Part Number:F1241
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.01
- Frequency Max:0.5
- P1dB:20.4
- Gain:20.2
- IP3:47
- Supply Voltage \ Vd Min:4.75
- Supply Voltage \ Vd Max:5.25
- Quiescent Current \ Id:159
- Noise Figure:4
- Package:QFN 5x5mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
0.01 |
0.5 |
20.4 |
|
20.2 |
47 |
4.75 |
5.25 |
4 |
|
|
|
Renesas
|
More Info
Matched Broadband RF VGA with Glitch-Free and Zero-Distortion The IDT F0480 RF VGA featuring Glitch-Free™ and Zero-Distortion™ technologies greatily reduces attenuation overshoot during attenuation state changes and provides +41 dBm OIP3 performance across a very wide bandwidth of 400 MHz to 2700 MHz at a typical current drain of 100mA. The device is internally matched so there is no need for optimizing with external matching components. Furthermore the device is internally matched so there is no need to optimize external matching elements. Features - 400 MHz – 2700 MHz; < 1 dB overshoot between gain transitions
- 13 dB typical max gain
- 23 dB gain range, 1 dB gain step resolution
- Excellent linearity +41 dBm OIP3
- Noise Figure 4 dB
- ICC = 100 mA
- 1.3 mA standby current
- SPI interface
- Broadband, Internally Matched
Specifications
- Part Number:F0480
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Amplifiers
- Frequency Min:0.4
- Frequency Max:2.7
- P1dB:22.2
- Gain:13
- IP3:41
- Supply Voltage \ Vd Min:4.75
- Supply Voltage \ Vd Max:5.25
- Quiescent Current \ Id:100
- Noise Figure:4
- Package:QFN 5x5mm
|
|
Submit Quote Request |
Submit Quote Request
|
|
Amplifiers |
0.4 |
2.7 |
22.2 |
|
13 |
41 |
4.75 |
5.25 |
4 |
|
