Renesas
|
More Info
The F6122 is a 16-ch dual-beam receive active beamforming RFIC designed for application in K/Ka-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF outputports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronicallyscanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 28dB of dynamic range,enabling precise beam pattern and polarization control. Features 17.7 – 21.2GHz operation
Supports 4 dual-pol or 8 single-pol elements
Two simultaneous and independent beam outputs
360° phase control with 6-bit resolution
28dB gain control with 0.45dB step size
2.3V nominal single supply input
Standard 1.8V digital logic
IDAC for external LNA biasing
Temperature compensation
Temperature sensor w/ digital readout
Advanced digital modes with fast beam steering
On-chip beam-state memory
3.8 x 4.6 x 0.9 mm, 63-pin FC-BGA
Specifications
- Part Number:F6122S
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:17.7
- Frequency Max:21.2
|
|
479 In Stock |
Submit Quote Request
|
|
17.7 |
21.2 |
|
|
|
Renesas
|
More Info
F6122S dual beam Rx active Beamforming RFIC 17.7-21.2GHz. The F6122S is designed for applications in K/Ka-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 28dB of dynamic range, enabling precise beam pattern and polarization control.
Specifications
- Part Number:F6122SEVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
|
|
3 In Stock |
Submit Quote Request
|
|
|
|
|
|
|
Renesas
|
More Info
Transmit/Receive Half Duplex IC 26.5GHz to 29.5GHz The F5288 is an eight-channel TRX half-duplex silicon IC designed using a SiGe BiCMOS process for 28GHz dual polarization 5G phased-array applications. The core IC has very flexible gain and phase control on each channel to achieve fine beam steering and gain compensation between radiating channels. The core design includes standard SPI protocol that operates up to 50MHz with fast-beam switching and fast beam-state loading. Features - 26.5GHz to 29.5GHz operation
- 8 radiation channels
- 100ns typical TX/RX mode switching time
- 20ns typical gain and phase settling time
- 31.5dB gain attenuation range
- 4-bit chip address
- Integrated PTAT with external biasing
- Internal temperature sensor
- Internal power detection
- Up to 50MHz SPI control
- 2048 on-chip programmable beam states
- Supply voltage: +2.3V to +2.7V
- 4.2mm × 5.5mm, 80-BGA package
- -40°C to +95°C ambient operating temperature range
- 50°C typical ambient operating temperature
Specifications
- Part Number:F5288
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:26.5
- Frequency Max:29.5
|
|
293 In Stock |
Submit Quote Request
|
|
26.5 |
29.5 |
|
|
|
Renesas
|
More Info
| 1 | $56.53 | | 10 | $52.18 | | 25 | $48.46 | | 50 | $46.47 |
The F6522 is an 8-channel transmit active beamforming RFIC designed for application in Ka-Band SATCOM planar phased array antennas. The IC has a single common RF input port and eight output channels. The eight independently controlled output channels can drive eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase control covering 360° and 25dB of gain control with a minimum step size of 0.2dB, enabling precise beam pattern and polarization control. Operating from a single supply of 2.1–2.5V, the RFIC has 28dB of nominal small signal gain with a typical P1dB of 11dBm per channel. The device is highly efficient and features a low power standby mode as well as independent enable controls on every channel. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allows for < 100ns beam position switching times at the array level, greatly reducing dead time and latency. Finally, the compact and CTE-matched FCCSP organic package with all single-ended 50Ω matched RF ports greatly simplifies the physical integration of these devices onto large antenna panels.
Specifications
- Part Number:F6522S
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:27.5
- Frequency Max:31
|
|
654 In Stock |
| 1 | $56.53 | | 10 | $52.18 | | 25 | $48.46 | | 50 | $46.47 |
|
|
27.5 |
31 |
|
|
|
Renesas
|
More Info
The F6513 is an 8-channel transmit active beamforming RFIC designed for application in Ku-Band planar phased array antennas for communications or radar applications. The IC has a single common RF input port and eight output channels. The eight independently controlled output channels can drive eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase control covering 360° and 25dB of gain control with a minimum step size of 0.2dB, enabling precise beam pattern and polarization control. Operating from a single supply of 2.1–2.5V, the RFIC has 23dB of nominal small signal gain with a typical P1dB of 12.5dBm per channel. The device is highly efficient and features a low power standby mode as well as independent enable controls on every channel. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allows for < 100ns beam position switching times at the array level, greatly reducing dead time and latency. Finally, the compact and CTE-matched FCCSP organic package with all single-ended 50Ω matched RF ports greatly simplifies the physical integration of these devices onto large antenna panels.
Specifications
- Part Number:F6513SEVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:14.4
- Frequency Max:17.3
|
|
1 In Stock |
Submit Quote Request
|
|
14.4 |
17.3 |
|
|
|
Renesas
|
More Info
| 1 | $47.49 | | 10 | $44.10 | | 100 | $42.40 | | 250 | $41.38 |
The F6513 is an 8-channel transmit active beamforming RFIC designed for application in Ku-Band planar phased array antennas for communications or radar applications. The IC has a single common RF input port and eight output channels. The eight independently controlled output channels can drive eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase control covering 360° and 25dB of gain control with a minimum step size of 0.2dB, enabling precise beam pattern and polarization control. Operating from a single supply of 2.1–2.5V, the RFIC has 23dB of nominal small signal gain with a typical P1dB of 12.5dBm per channel. The device is highly efficient and features a low power standby mode as well as independent enable controls on every channel. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allows for < 100ns beam position switching times at the array level, greatly reducing dead time and latency. Finally, the compact and CTE-matched FCCSP organic package with all single-ended 50Ω matched RF ports greatly simplifies the physical integration of these devices onto large antenna panels.
Specifications
- Part Number:F6513S
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:14.4
- Frequency Max:17.3
|
|
1908 In Stock |
| 1 | $47.49 | | 10 | $44.10 | | 100 | $42.40 | | 250 | $41.38 |
|
|
14.4 |
17.3 |
|
|
|
Renesas
|
More Info
The F6521 is an 8-channel transmit active beamforming RFIC designed for application in Ku-Band SATCOM planar phased array antennas. The IC has a single common RF input port and eight output channels. The eight independently controlled output channels can drive eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase control covering 360° and 25dB of gain control with a minimum step size of 0.2dB, enabling precise beam pattern and polarization control. Operating from a single supply of 2.1–2.5V, the RFIC has 28dB of nominal small signal gain with a typical P1dB of 10.5dBm per channel. The device is highly efficient and features a low power standby mode as well as independent enable controls on every channel. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allows for < 100ns beam position switching times at the array level, greatly reducing dead time and latency. Finally, the compact and CTE-matched FCCSP organic package with all single-ended 50Ω matched RF ports greatly simplifies the physical integration of these devices onto large antenna panels.
Specifications
- Part Number:F6521SEVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:13.75
- Frequency Max:14.5
|
|
3 In Stock |
Submit Quote Request
|
|
13.75 |
14.5 |
|
|
|
Renesas
|
More Info
The F6522 is an 8-channel transmit active beamforming RFIC designed for application in Ka-Band SATCOM planar phased array antennas. The IC has a single common RF input port and eight output channels. The eight independently controlled output channels can drive eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase control covering 360° and 25dB of gain control with a minimum step size of 0.2dB, enabling precise beam pattern and polarization control. Operating from a single supply of 2.1–2.5V, the RFIC has 28dB of nominal small signal gain with a typical P1dB of 11dBm per channel. The device is highly efficient and features a low power standby mode as well as independent enable controls on every channel. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allows for < 100ns beam position switching times at the array level, greatly reducing dead time and latency. Finally, the compact and CTE-matched FCCSP organic package with all single-ended 50Ω matched RF ports greatly simplifies the physical integration of these devices onto large antenna panels.
Specifications
- Part Number:F6522SEVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:27.5
- Frequency Max:31
|
|
3 In Stock |
Submit Quote Request
|
|
27.5 |
31 |
|
|
|
Renesas
|
More Info
The F6121 is a 16-channel dual-beam receive active beamforming RFIC designed for application in Ku-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control.
Specifications
- Part Number:F6121SEVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:10.7
- Frequency Max:12.75
|
|
13 In Stock |
Submit Quote Request
|
|
10.7 |
12.75 |
|
|
|
Renesas
|
More Info
The F6123 is a 16-channel dual-beam receive active beamforming RFIC designed for application in Ku/CDL-Band planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels.
The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control.
The IC operates from a single supply of 2.1V–2.5V. When paired with the Renesas F6923 LNA, it achieves a nominal cascaded gain of 30dB, while minimizing the front end feed loss due to the flexibility of LNA physical placement near the antenna feeds.
Specifications
- Part Number:F6123SEVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:14.4
- Frequency Max:17.3
|
|
2 In Stock |
Submit Quote Request
|
|
14.4 |
17.3 |
|
|
|
Renesas
|
More Info
| 1 | $65.58 | | 10 | $60.89 | | 100 | $58.55 | | 250 | $57.14 |
The F6123 is a 16-channel dual-beam receive active beamforming RFIC designed for application in Ku/CDL-Band planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels.
The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control.
The IC operates from a single supply of 2.1V–2.5V. When paired with the Renesas F6923 LNA, it achieves a nominal cascaded gain of 30dB, while minimizing the front end feed loss due to the flexibility of LNA physical placement near the antenna feeds.
Specifications
- Part Number:F6123S
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:14.4
- Frequency Max:17.3
|
|
892 In Stock |
| 1 | $65.58 | | 10 | $60.89 | | 100 | $58.55 | | 250 | $57.14 |
|
|
14.4 |
17.3 |
|
|
|
Renesas
|
More Info
| 1 | $78.07 | | 10 | $72.06 | | 25 | $66.91 | | 50 | $64.16 |

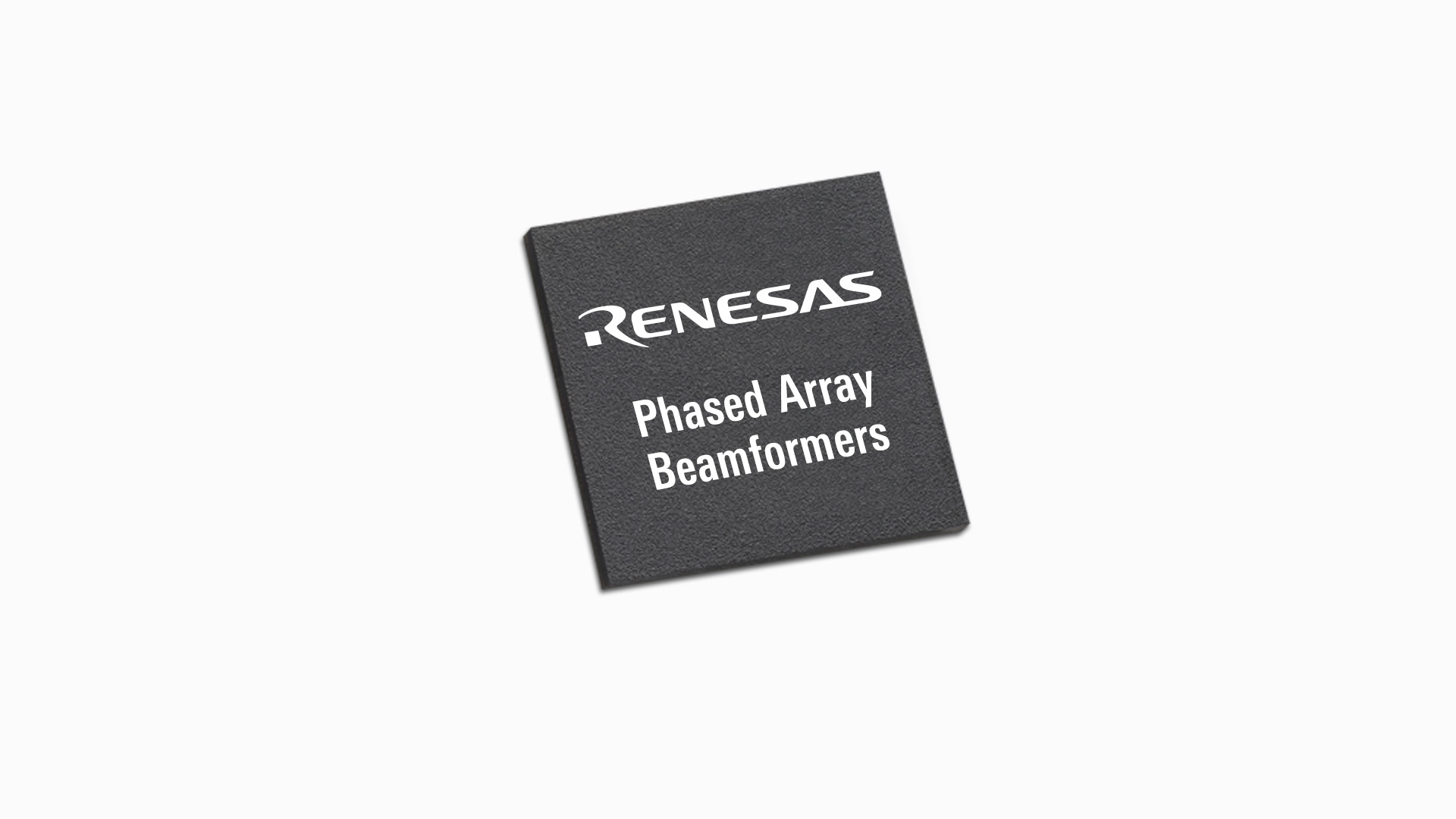

The F6121 is a 16-channel dual-beam receive active beamforming RFIC designed for application in Ku-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control.
Specifications
- Part Number:F6121S
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:10.7
- Frequency Max:12.75
|
|
791 In Stock |
| 1 | $78.07 | | 10 | $72.06 | | 25 | $66.91 | | 50 | $64.16 |
|
|
10.7 |
12.75 |
|
|
|
Renesas
|
More Info
| 1 | $56.53 | | 10 | $52.18 | | 100 | $48.46 | | 250 | $46.47 |
The F6521 is an 8-channel transmit active beamforming RFIC designed for application in Ku-Band SATCOM planar phased array antennas. The IC has a single common RF input port and eight output channels. The eight independently controlled output channels can drive eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase control covering 360° and 25dB of gain control with a minimum step size of 0.2dB, enabling precise beam pattern and polarization control. Operating from a single supply of 2.1–2.5V, the RFIC has 28dB of nominal small signal gain with a typical P1dB of 10.5dBm per channel. The device is highly efficient and features a low power standby mode as well as independent enable controls on every channel. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allows for < 100ns beam position switching times at the array level, greatly reducing dead time and latency. Finally, the compact and CTE-matched FCCSP organic package with all single-ended 50Ω matched RF ports greatly simplifies the physical integration of these devices onto large antenna panels.
Specifications
- Part Number:F6521S
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:13.75
- Frequency Max:14.5
|
|
556 In Stock |
| 1 | $56.53 | | 10 | $52.18 | | 100 | $48.46 | | 250 | $46.47 |
|
|
13.75 |
14.5 |
|
|
|
Renesas
|
More Info
The F6212 is a 16-channel dual-beam receive active beamforming RFIC multi-chip module designed for application in Ka-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control. The IC operates from two supply rails of 2.1V–2.5V and 0.95V–1.05V with a typical channel gain of 28dB. The chip includes power management features such as a low power standby mode, independent enable controls on every channel and a single-beam mode activated via a dedicated control pin. An integrated Hi-Q bandpass filter provides rejection of SATCOM Tx and 5G mmWave signals, improving the dynamic range without additional power consumption. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allow for <100ns beam position switching times at the array level, greatly reducing dead time and latency.
Specifications
- Part Number:F6212EVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:17.7
- Frequency Max:21.2
|
|
4 In Stock |
Submit Quote Request
|
|
17.7 |
21.2 |
|
|
|
Renesas
|
More Info
| 1 | $119.55 | | 10 | $110.35 | | 25 | $102.47 | | 50 | $98.26 |
The F6212 is a 16-channel dual-beam receive active beamforming RFIC multi-chip module designed for application in Ka-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control. The IC operates from two supply rails of 2.1V–2.5V and 0.95V–1.05V with a typical channel gain of 28dB. The chip includes power management features such as a low power standby mode, independent enable controls on every channel and a single-beam mode activated via a dedicated control pin. An integrated Hi-Q bandpass filter provides rejection of SATCOM Tx and 5G mmWave signals, improving the dynamic range without additional power consumption. The device SPI bus and control pins operate from standard 1.8V logic at speeds up to 50MHz. Advanced digital modes and large on-chip memory allow for <100ns beam position switching times at the array level, greatly reducing dead time and latency.
Specifications
- Part Number:F6212
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:17.7
- Frequency Max:21.2
|
|
1054 In Stock |
| 1 | $119.55 | | 10 | $110.35 | | 25 | $102.47 | | 50 | $98.26 |
|
|
17.7 |
21.2 |
|
|
|
Renesas
|
More Info
Transmit/Receive Half Duplex IC 25GHz to 31GHz The F5280 is a 4-channel TRX half-duplex silicon IC designed using a SiGe BiCMOS process for 28GHz 5G phased-array applications. The core IC has very flexible gain and phase control on each channel to achieve fine beam steering and gain compensation between radiating channels. The core design includes standard SPI protocol that operates up to 50MHz with fast-beam switching, fast beam-state loading, and fast four on-chip beam storage. Features - 25GHz to 31GHz operation
- 4 radiation channels
- 100ns typical RF switch Tx/Rx mode switching time
- 20ns typical gain and phase settling time
- 3° typical RMS phase error
- 0.4dB typical RMS gain error
- Advanced SPI with 4 state memory
- 6-bit chip address
- Integrated PTAT with external biasing
- Internal temperature sensor
- Up to 50MHz SPI control
- Programmable on-chip memory
- Supply voltage: +2.3V to +2.7V
- -40°C to +105°C ambient operating temperature range
- 3.6 × 3.6 mm, 49-BGA package
Specifications
- Part Number:F5280
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:26.5
- Frequency Max:29.5
|
|
190 In Stock |
Submit Quote Request
|
|
26.5 |
29.5 |
|
|
|
Renesas
|
More Info
Evaluation System for F5728 up/down converter 24.25GHz to 29.5GHz
Specifications
- Part Number:F5728EVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:24.25
- Frequency Max:29.5
|
|
Submit Quote Request |
|
|
24.25 |
29.5 |
|
|
|
Renesas
|
More Info
8-Channel Dual-Polarization TRX Beamformer IC at 24.25GHz - 27.5GHz The F5268 is an eight-channel TRX silicon IC designed for dual polarization 5G phased-array applications at n258/n261 bands. This device provides more than 15.5dBm linear output power* in silicon for wide-band 5G-NR waveforms.
*Power level with <3% EVM using 400MHz 5G-NR CP-OFDM waveform Features 24.25GHz to 27.5GHz operation
8 radiation channels, beam-per-polarization
Flexible output power and high efficiency with Dynamic Array Power (DAP™)
ArraySense™ technology for real-time monitoring
High-speed SPI control with RapidBeam™ technology
5.1mm × 5.1mm, 118-BGA package with exposed-die
-40°C to +95°C ambient operating temperature range
Specifications
- Part Number:F5268EVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:24.25
- Frequency Max:27.5
|
|
Submit Quote Request |
Submit Quote Request
|
|
24.25 |
27.5 |
|
|
|
Renesas
|
More Info
Beamformer, 17.7GHz-21.2GHz, 8 channel, Rx IC Module, Ka-Band Satcom
Specifications
- Part Number:F6202
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:17.7
- Frequency Max:21.2
|
|
Submit Quote Request |
Submit Quote Request
|
|
17.7 |
21.2 |
|
|
|
Renesas
|
More Info
8-Channel Dual-Polarization TRX Beamformer IC at 24.25GHz - 27.5GHz The F5268 is an eight-channel TRX silicon IC designed for dual polarization 5G phased-array applications at n258/n261 bands. This device provides more than 15.5dBm linear output power* in silicon for wide-band 5G-NR waveforms.
*Power level with <3% EVM using 400MHz 5G-NR CP-OFDM waveform Features 24.25GHz to 27.5GHz operation
8 radiation channels, beam-per-polarization
Flexible output power and high efficiency with Dynamic Array Power (DAP™)
ArraySense™ technology for real-time monitoring
High-speed SPI control with RapidBeam™ technology
5.1mm × 5.1mm, 118-BGA package with exposed-die
-40°C to +95°C ambient operating temperature range
Specifications
- Part Number:F5268
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:24.25
- Frequency Max:27.5
|
|
Submit Quote Request |
Submit Quote Request
|
|
24.25 |
27.5 |
|
|
|
Renesas
|
More Info
Transmit/Receive Half Duplex IC 26.5GHz to 29.5GHz The F5288 is an eight-channel TRX half-duplex silicon IC designed using a SiGe BiCMOS process for 28GHz dual polarization 5G phased-array applications. The core IC has very flexible gain and phase control on each channel to achieve fine beam steering and gain compensation between radiating channels. The core design includes standard SPI protocol that operates up to 50MHz with fast-beam switching and fast beam-state loading. Features - 26.5GHz to 29.5GHz operation
- 8 radiation channels
- 100ns typical TX/RX mode switching time
- 20ns typical gain and phase settling time
- 31.5dB gain attenuation range
- 4-bit chip address
- Integrated PTAT with external biasing
- Internal temperature sensor
- Internal power detection
- Up to 50MHz SPI control
- 2048 on-chip programmable beam states
- Supply voltage: +2.3V to +2.7V
- 4.2mm × 5.5mm, 80-BGA package
- -40°C to +95°C ambient operating temperature range
- 50°C typical ambient operating temperature
Specifications
- Part Number:F5288EVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:26.5
- Frequency Max:29.5
|
|
Submit Quote Request |
Submit Quote Request
|
|
26.5 |
29.5 |
|
|
|
Renesas
|
More Info
Transmit/Receive Half Duplex IC 25GHz to 31GHz The F5280 is a 4-channel TRX half-duplex silicon IC designed using a SiGe BiCMOS process for 28GHz 5G phased-array applications. The core IC has very flexible gain and phase control on each channel to achieve fine beam steering and gain compensation between radiating channels. The core design includes standard SPI protocol that operates up to 50MHz with fast-beam switching, fast beam-state loading, and fast four on-chip beam storage. Features - 25GHz to 31GHz operation
- 4 radiation channels
- 100ns typical RF switch Tx/Rx mode switching time
- 20ns typical gain and phase settling time
- 3° typical RMS phase error
- 0.4dB typical RMS gain error
- Advanced SPI with 4 state memory
- 6-bit chip address
- Integrated PTAT with external biasing
- Internal temperature sensor
- Up to 50MHz SPI control
- Programmable on-chip memory
- Supply voltage: +2.3V to +2.7V
- -40°C to +105°C ambient operating temperature range
- 3.6 × 3.6 mm, 49-BGA package
Specifications
- Part Number:F5280EVS
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:26.5
- Frequency Max:29.5
|
|
Submit Quote Request |
Submit Quote Request
|
|
26.5 |
29.5 |
|
