Renesas
|
More Info
| 1 | $4.57 | | 10 | $4.49 | | 100 | $3.82 | | 1000 | $2.48 |
75 Ohm Voltage Variable RF Attenuator The F2270 is a low insertion loss Voltage Variable RF Attenuator (VVA) covering a broad frequency range from 5MHz to 3000MHz. In addition to providing low insertion loss, the F2270 provides excellent linearity performance over its entire voltage control and attenuation range. The device uses a single positive supply voltage of 3.15V to 5.5V. Other features include the VMODE pin allowing either positive or negative voltage control slope vs attenuation and multi-directional operation, meaning the RF input can be applied to either RF1 or RF2 pins. Control voltage ranges from 0V to 5V using either positive or negative control voltage slope. Features - Low Insertion Loss: 1.1dB at 300MHz
- Typical / Minimum IIP3 > 50MHz: 62dBm / 46dBm
- Typical / Minimum IIP2 > 50MHz: 98dBm / 77dBm
- Up to 35dB attenuation range
- Bi-directional RF ports
- +36dBm input P1dB compression
- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic > 50MHz
- Supply voltage: 3.15V to 5.50V
- VCTRL range: 0V to 5.0V
- +105°C maximum operating temperature
- 3 x 3 mm, 16-QFN package
Specifications
- Part Number:F2270
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:5
- Frequency Max:3000
- Attn Range:35
- Impedance:75
- Insertion Loss Min:1.1
- IIP3:62
- Package:16L QFN
|
|
97 In Stock |
| 1 | $4.57 | | 10 | $4.49 | | 100 | $3.82 | | 1000 | $2.48 |
|
|
|
5 |
3000 |
|
35 |
|
75 |
1.1 |
|
62 |
16L QFN |
|
|
Renesas
|
More Info
| 1 | $5.40 | | 10 | $5.06 | | 100 | $4.55 | | 1000+ | $4.16 |
Wideband Voltage Variable RF Attenuator The F2258 is a low insertion loss Voltage Variable RF Attenuator (VVA) covers a broad frequency range from 50 MHz to 6000 MHz. In addition to providing low insertion loss, the F2258 provides high linearity and low retrun loss performance over entire frequency, voltage control and attenuation ranges. The device uses a single positive supply voltage of 3.15 V to 5.25 V. Other features include the VMODE pin allowing either positive or negative voltage control slope vs attenuation and multi-directional operation meaning the RF input can be applied to either RF1 or RF2 pins. This device has a wide control voltage range using either positive or negative control voltage slope. Features - Low Insertion Loss: 1.4 dB @ 2000 MHz
- Typical / Min IIP3: 65 dBm / 47 dBm
- Typical / Min IIP2: 95 dBm / 87 dBm
- 33.6 dB Attenuation Range
- Bi-directional RF ports
- +34.4 dBm Input P1 dB compression
- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic
- Supply voltage: 3.15 V to 5.25 V
- VCTRL range: 0 to 3.60 V (when Vdd = 3.9 to 5.25 V), 0 to (Vdd-0.3 V) (when Vdd = 3.15 to 3.90 V)
- +105°C max operating temperature
- 3x3, 16-pin TQFN package
Specifications
- Part Number:F2258
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:50
- Frequency Max:6000
- Attn Range:33.6
- Impedance:50
- Insertion Loss Min:1.4
- IIP3:65
- Package:16L QFN
|
|
100 In Stock |
| 1 | $5.40 | | 10 | $5.06 | | 100 | $4.55 | | 1000+ | $4.16 |
|
|
|
50 |
6000 |
|
33.6 |
|
50 |
1.4 |
|
65 |
16L QFN |
|
|
Renesas
|
More Info
| 1 | $5.80 | | 10 | $5.18 | | 100 | $4.63 | | 1000+ | $3.77 |
Wideband Voltage Variable RF Attenuator The F2255 is a low insertion loss Voltage Variable RF Attenuator (VVA) covers a broad frequency range from 1 MHz to 3000 MHz. In addition to providing low insertion loss, the F2255 provides high linearity and low retrun loss performance over entire frequency, voltage control and attenuation ranges. The device uses a single positive supply voltage of 3.15 V to 5.25 V. Other features include the VMODE pin allowing either positive or negative voltage control slope vs attenuation and multi-directional operation meaning the RF input can be applied to either RF1 or RF2 pins. This device has a wide control voltage range using either positive or negative control voltage slope. Features - Low Insertion Loss: 1.1 dB @ 500 MHz
- Typical / Min IIP3: 60 dBm / 44 dBm
- Typical / Min IIP2: 98 dBm / 74 dBm
- 34.6 dB Attenuation Range
- Bi-directional RF ports
- +36 dBm Input P1 dB compression
- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic
- Supply voltage: 3.15 V to 5.25 V
- VCTRL range: 0 to 3.60 V (when Vdd = 3.9 to 5.25 V, 0 to (Vdd-0.3 V) (when Vdd = 3.15 to 3.90 V)
- +105°C max operating temperature
- 3x3, 16-pin TQFN package
Specifications
- Part Number:F2255
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:1
- Frequency Max:3000
- Attn Range:34.6
- Impedance:50
- Insertion Loss Min:1.1
- IIP3:60
- Package:16L QFN
|
|
100 In Stock |
| 1 | $5.80 | | 10 | $5.18 | | 100 | $4.63 | | 1000+ | $3.77 |
|
|
|
1 |
3000 |
|
34.6 |
|
50 |
1.1 |
|
60 |
16L QFN |
|
|
Renesas
|
More Info
| 1 | $6.02 | | 10 | $4.85 | | 100 | $4.42 | | 1000+ | $3.90 |

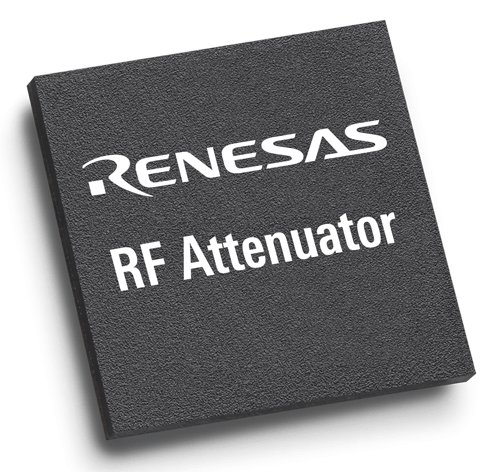

Wideband Voltage Variable RF Attenuator The F2250 is a low insertion loss Voltage Variable RF Attenuator (VVA) covers a broad frequency range from 50 MHz to 6000 MHz. In addition to providing low insertion loss, the F2250 provides excellent linearity performance over its entire voltage control and attenuation range. The device uses a single positive supply voltage of 3.15 V to 5.25 V. Other features include the VMODE pin allowing either positive or negative voltage control slope vs attenuation and multi-directional operation meaning the RF input can be applied to either RF1 or RF2 pins. Control voltage ranges from 0 V to 2.8 V using either positive or negative control voltage slope. Features - Low Insertion Loss: 1.4 dB @ 2000 MHz
- Typical / Min IIP3: 65 dBm / 47 dBm
- Typical / Min IIP2: 95 dBm / 87 dBm
- 33.6 dB Attenuation Range
- Bi-directional RF ports
- +34.4 dBm Input P1 dB compression
- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic
- Supply voltage: 3.15 V to 5.25 V
- VCTRL range: 0 V to 2.8 V
- +105°C max operating temperature
- 3x3, 16-pin TQFN package
Specifications
- Part Number:F2250
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:50
- Frequency Max:6000
- Attn Range:35
- Impedance:50
- Insertion Loss Min:1.4
- IIP3:65
- Package:16L QFN
|
|
624 In Stock |
| 1 | $6.02 | | 10 | $4.85 | | 100 | $4.42 | | 1000+ | $3.90 |
|
|
|
50 |
6000 |
|
35 |
|
50 |
1.4 |
|
65 |
16L QFN |
|
|
Renesas
|
More Info
| 1 | $4.40 | | 10 | $3.95 | | 100 | $3.62 | | 1000+ | $3.18 |
F1975 6-bit 0.5 dB, 75 , Glitch-Free™ Digital Step Attenuator
Specifications
- Part Number:F1975
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:5
- Frequency Max:3000
- Bits:6
- Attn Range:31.5
- Attenuation Step:0.5
- Impedance:75
- Insertion Loss Min:1.2
- IIP3:64
- Package:20L QFN
|
|
100 In Stock |
| 1 | $4.40 | | 10 | $3.95 | | 100 | $3.62 | | 1000+ | $3.18 |
|
|
|
5 |
3000 |
6 |
31.5 |
0.5 |
75 |
1.2 |
|
64 |
20L QFN |
|
|
Renesas
|
More Info
| 1 | $6.20 | | 10 | $5.53 | | 100 | $4.54 | | 1000+ | $3.86 |
The F1977 Digital-Step-Attenuator featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.75 dB with excellent accuracy and very low distortion and insertion loss.
Specifications
- Part Number:F1977
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:5
- Frequency Max:3000
- Bits:7
- Attn Range:31.75
- Attenuation Step:0.25
- Impedance:75
- Insertion Loss Min:1.4
- IIP3:64
- Package:32L QFN
|
|
260 In Stock |
| 1 | $6.20 | | 10 | $5.53 | | 100 | $4.54 | | 1000+ | $3.86 |
|
|
|
5 |
3000 |
7 |
31.75 |
0.25 |
75 |
1.4 |
|
64 |
32L QFN |
|
|
Renesas
|
More Info
7-bit 0.25 dB Glitch-Free™ Wideband Digital Step Attenuator The F1956 is part of a family of Glitch-FreeTM DSAs which offers very high reliability due to its monolithic silicon die construction in a compact 5mm x 5mm 32-pin package TQFN package. It has very low insertion loss is with minimal distortion and is designed with a 50 input and output impedance. Additionally the device is designed to have high accurate which improves SNR and/or ACLR by ensuring the system gain is achieved as close to targeted as possible. Features - Serial & 7-bit Parallel Interface
- 31.75 dB Range
- 0.25 dB steps
- Glitch-FreeTM: < 2 dB transient ringing
- 500 ns settling time
- Ultra linear +64 dBm IP3
- Low Insertion Loss < 1.3 dB @ 4 GHz
- Attenuation error < 0.6 dB @ 4 GHz
- 3.3 V or 5 V Supply
- 1.8 V or 3.3 V control logic
- -40 °C to +105 °C operating temperature
- 5mm x 5mm, 32-pin TQFN package
Specifications
- Part Number:F1956
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:1
- Frequency Max:6000
- Bits:7
- Attn Range:31.75
- Attenuation Step:0.25
- Impedance:50
- Insertion Loss Min:1.7
- IIP3:64
- Package:32L QFN
|
|
100 In Stock |
Submit Quote Request
|
|
|
1 |
6000 |
7 |
31.75 |
0.25 |
50 |
1.7 |
|
64 |
32L QFN |
|
|
Renesas
|
More Info
| 1 | $5.50 | | 10 | $4.92 | | 100 | $4.05 | | 1000+ | $3.42 |
6-bit 0.50 dB Glitch-Free™ Digital Step Attenuator The IDT F1951 Digital-Step-Attenuator featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.5 dB with excellent accuracy and very low distortion. Features - Glitch-Free™, < 0.6 dB transient overshoot
- 100 MHz to 4000 MHz frequency range
- Spurious Free Design
- 3V to 5V supply
- Attenuation Error < 0.2 dB @ 2 GHz
- Low Insertion Loss < 1.2 dB @ 2 GHz
- Excellent Linearity +68 dBm IP3I
- Fast settling time, < 400 nsec
- Class 2 JEDEC ESD (> 2kV HBM)
- Serial Interface 31.5 dB Range
- 4x4 mm Thin VFQFPN 24 pin package
Specifications
- Part Number:F1951
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:100
- Frequency Max:4000
- Bits:6
- Attn Range:31.5
- Attenuation Step:0.5
- Impedance:50
- Insertion Loss Min:1.2
- IIP3:68
- Package:24L QFN
|
|
375 In Stock |
| 1 | $5.50 | | 10 | $4.92 | | 100 | $4.05 | | 1000+ | $3.42 |
|
|
|
100 |
4000 |
6 |
31.5 |
0.5 |
50 |
1.2 |
|
68 |
24L QFN |
|
|
Renesas
|
More Info
7-bit 0.25 dB Glitch-Free™ Digital Step Attenuator The IDT F1950 Digital-Step-Attenuator featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.75 dB with excellent accuracy and very low distortion. Features - Glitch-Free™, < 0.6 dB transient overshoot
- 150 MHz to 4000 MHz frequency range
- Spurious Free Design
- 3V to 5V supply
- Attenuation Error < 0.3 dB @ 2 GHz
- Low Insertion Loss < 1.3 dB @ 2 GHz
- Excellent Linearity +65 dBm IP3I
- Fast settling time, < 400 nsec
- Class 2 JEDEC ESD (> 2kV HBM)
- Serial & Parallel Interface 31.75 dB Range
- 4x4 mm Thin VFQPFN 24 pin package
Specifications
- Part Number:F1950
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:150
- Frequency Max:4000
- Bits:7
- Attn Range:31.75
- Attenuation Step:0.25
- Impedance:50
- Insertion Loss Min:1.3
- IIP3:65
- Package:24L QFN
|
|
100 In Stock |
|
|
|
150 |
4000 |
7 |
31.75 |
0.25 |
50 |
1.3 |
|
65 |
24L QFN |
|
|
Renesas
|
More Info
| 1 | $5.50 | | 10 | $4.98 | | 100 | $4.60 | | 1000+ | $4.22 |
F19126-bit 0.5 dB Glitch-Free™ Wideband Digital Step Attenuator
Specifications
- Part Number:F1912
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:1
- Frequency Max:4000
- Bits:6
- Attn Range:31.5
- Attenuation Step:0.5
- Impedance:50
- Insertion Loss Min:1.4
- IIP3:63
- Package:20L QFN
|
|
3925 In Stock |
| 1 | $5.50 | | 10 | $4.98 | | 100 | $4.60 | | 1000+ | $4.22 |
|
|
|
1 |
4000 |
6 |
31.5 |
0.5 |
50 |
1.4 |
|
63 |
20L QFN |
|
|
Renesas
|
More Info
| 1 | $6.70 | | 10 | $6.05 | | 100 | $5.02 | | 1000+ | $4.52 |
RF Attenuator, Digital Step, .001 to 6 GHz, 31.75 dB, 7-Bit, 0.25 dB Steps
Specifications
- Part Number:F1958
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Digital Step
- Frequency Min:1
- Frequency Max:6000
- Bits:7
- Attn Range:31.75
- Attenuation Step:0.25
- Impedance:50
- Insertion Loss Min:1.2
|
|
100 In Stock |
| 1 | $6.70 | | 10 | $6.05 | | 100 | $5.02 | | 1000+ | $4.52 |
|
|
Digital Step |
1 |
6000 |
7 |
31.75 |
0.25 |
50 |
1.2 |
|
|
|
|
|
Renesas
|
More Info
Voltage Variable RF Attenuator - 50MHz to 6000MHz The F2251 is a low insertion loss Voltage Variable RF Attenuator (VVA) designed for a multitude of wireless and RF applications. The device covers a broad frequency range from 50MHz to 6000MHz. In addition to providing low insertion loss, the F2251 provides excellent linearity performance over its entire voltage control and attenuation range. The F2251 uses a single positive supply voltage of 3.15V to 5.25V. Other features include an enhancement to the Phase Noise performance of the device compared to its predecessor (F2250). The device also features a positive attenuation slope only. Features - Frequency range: 50MHz to 6000MHz
- Low insertion loss: 1.4dB at 2000MHz
- Typical/Minimum IIP3: 67dBm / 47dBm
- Typical/Minimum IIP2: 105dBm / 95dBm
- 33.6dB attenuation range
- Bi-directional RF ports
- +34.4dBm Input P1dB compression
- Enhanced phase noise performance
- Linear-in-dB attenuation characteristic
- Supply voltage: 3.15V to 5.25V
- VCTRL range: 0V to 3.6V using 5V supply
- +105°C maximum operating temperature
- 3 × 3 mm 16-VFQFPN package
Specifications
- Part Number:F2251
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Type:Variable Voltage
- Frequency Min:50
- Frequency Max:6000
- Attn Range:35
- IIP3:67
|
|
Submit Quote Request |
Submit Quote Request
|
|
Variable Voltage |
50 |
6000 |
|
35 |
|
|
|
|
67 |
|
|
|
Renesas
|
More Info
6-bit 0.5dB, 75 Ohm, Glitch-Free™ Digital Step Attenuator The IDT F1978 Digital Step Attenuator (DSA) featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.5dB with excellent accuracy and very low distortion and insertion loss. The product supports new Direct serial mode programming as well as Conventional serial programming and Parallel programming modes of Direct and Latched. The F1978 DSA has identical RF performance as the F1975 DSA. The difference between F1978 and F1975 is that F1978 has an additional programming mode called Direct Serial Programming. Consult the "Programming" section of the F1978 datasheet or application note AN-945 “Comparison of F1975 and F1978 Digital Step Attenuator Serial Programming Methods”. Features - 5MHz to 3000MHz frequency range
- Glitch-Free™ low transient overshoot
- Low insertion loss 1.2dB at 1GHz
- Excellent linearity +64dBm IIP3
- Attenuation step error 0.1dB at 1GHz
- Serial and parallel interface 31.5dB range
- Low spurious design
- 3V / 5V supply, 1.8V / 3.3V control logic
- Fast settling time
- Class 2 JEDEC ESD (2kV HBM)
- 4 x 4 mm 20-TQFN package
Specifications
- Part Number:F1978NCGK8
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:5
- Frequency Max:3000
- Bits:6
- Attn Range:31.5
- Attenuation Step:0.5
- Impedance:75
- Insertion Loss Min:1.2
- IIP3:64
- Package:20L QFN
|
|
Submit Quote Request |
Submit Quote Request
|
|
|
5 |
3000 |
6 |
31.5 |
0.5 |
75 |
1.2 |
|
64 |
20L QFN |
|
|
Renesas
|
More Info
The IDT F1953 is part of a family of Glitch-FreeTM DSAs optimized for the demanding requirements of communications Infrastructure. These devices are offered in a compact 4x4 QFN package with 50 impedances for ease of integration.
Digital step attenuators are used in Receivers and Transmitters to provide gain control. The IDT F1953 is a 6-bit step attenuator optimized for these demanding applications. The silicon design has very low insertion loss and low distortion (> +60 dBm IP3I.) The device has pinpoint accuracy and settles to final attenuation value within 400 ns. Most importantly, the F1953 includes IDT’s Glitch-FreeTM technology which results in less than 0.5 dB of overshoot ringing during MSB transitions. This is in stark contrast to competing DSAs that glitch as much as 10 dB. - Lowest insertion loss for best SNR
- Glitch-FreeTM when transitioning – won’t damage PA or ADC
- Extremely accurate with low distortion
Specifications
- Part Number:F1953NCGI8
- Manufacturer:Renesas Electronics America Inc.
- Status:Standard
- Frequency Min:400
- Frequency Max:4000
- Bits:6
- Attn Range:31.5
- Attenuation Step:0.5
- Impedance:50
- Insertion Loss Min:1.4
- IIP3:63
- Package:20L QFN
|
|
Submit Quote Request |
Submit Quote Request
|
|
|
400 |
4000 |
6 |
31.5 |
0.5 |
50 |
1.4 |
|
63 |
20L QFN |
