Home>> RF Filter - Band Pass>> QPQ1286

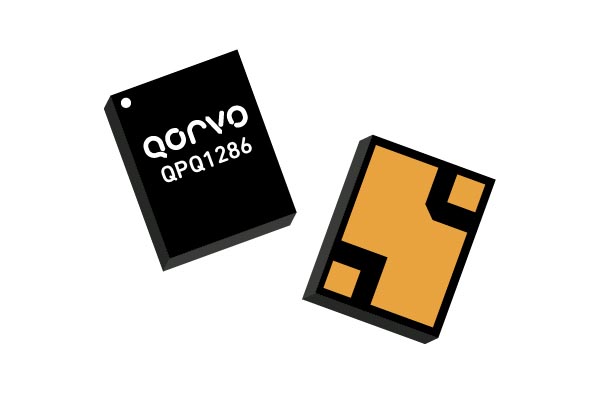

QPQ1286

Model Number: ODCPROGRAM

RF Filter - Band Pass from Qorvo

RF Filter, BAW, 2345 MHz, Band 40, 3-Pin, 2 x 1.6 mm, SMT

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPQ1286 is a high performance Bulk Acoustic Wave (BAW) filter designed to meet the strict LTE rejection requirements for use in B40, Sub-Band 2320-2370 MHz QPQ1286 is specifically designed to meet the high performance expectations of insertion loss and rejection for LTE TDD systems under all operating conditions.

The QPQ1286 uses common module packaging techniques to achieve the industry standard 2.0 x 1.6 x 0.73 mm footprint.

Part Number: QPQ1286
Manufacturer: Qorvo
Filtering Technology: BAW
Center Frequency: 2345 MHz
Bandwidth: 40 MHz
Insertion Loss TYP: 1.9 dB
Return Loss Typ: 14 dB
Package: SMT
Length: 2 mm
Width: 1.6 mm

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	QPQ1286EVB Qorvo	Evaluation Board for QPQ1286
