1040-027

Southwest Antennas from Southwest Antennas

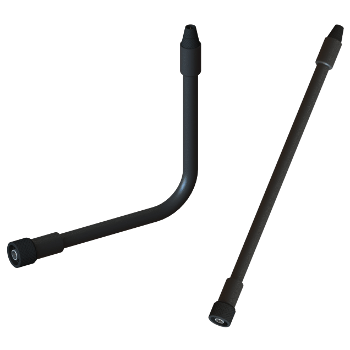

RF Coaxial Gooseneck Assembly, .470"Od X 12" L, Type N(m) - Type SMA(m) REV 0

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance:

The Southwest Antennas' 12" RF Coaxial Gooseneck Assembly allows for flexible antenna mounting options, allowing omni antennas to be mounted in different positions with respect to other antennas. This becomes particularly useful when dealing with MIMO radio antenna setups & dismounted user applications. Southwest Antennas RF Coaxial Gooseneck Assemblies can also be threaded through vest loops, web gear, and MOLLE gear giving users increased flexibility in antenna mounting options.
Part #1040-027 from Southwest Antennas features an overall length of twelve inches, an outside diameter of 0.47 inches, and Type-N(m) Non-Rotating to SMA(m) Non-Rotating RF connectors. This model is waterproof to a depth of 20 meters (65.6 ft.), can bend and hold past a 180-degree angle, and has a black low-visibility finish.

Part Number: 1040-027
Manufacturer: Southwest Antennas
Frequency: 8 GHz
Connector 1: N Male
Connector 2: SMA Male
Max VSWR: 1.9:1
Length: 12 in
Comments: Flexible Goose Neck

No Content Available

Part Function	Part Number	Description
Complementary Product	1040-028 Southwest Antennas	RF Coaxial Gooseneck Assembly, .495" Od X 12" L, Type N(m) - Type SMA(m) REV 0
