Home>> RF Antenna>> 1066-028

1066-028

Southwest Antennas from Southwest Antennas

Antenna, Omni Concealment Antenna, 902 - 928 MHz, 2.2 dBi

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance:

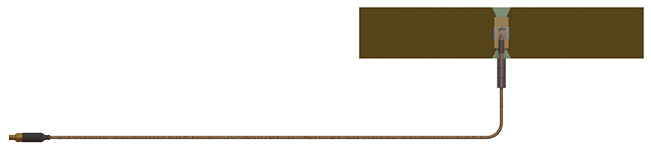

Southwest Antennas Part # 1066-028 is a 900 MHz ISM Band omni-directional half wave dipole concealment antenna that operates in the 902 - 928 MHz frequency band. The product is designed to be integrated inside of other devices. The antenna can be tuned to optimize performance inside of specific concealments by adjusting matching circuit discrete component values. This antenna features 11.48 inches of RF cable and a SMP(f) RF connector.

Features:

902 - 928 MHz
Half Wave Dipole Design
2.2 dBi Omni Radiation Pattern
Small Form Factor
High Performance
Vertical Polarization
Extremely Light Weight (1.00 oz / 28.35 g)
SMP(f) RF Connector
Integrated Ferrite Beads to Limit Cable Radiation
Integrated Matching Circuit PCBA Allows Antenna Feed
Point Tuning for Custom Applications
Ideal for Concealment & Surveillance Applications

Markets and Applications Include:

Military / Defense
Law Enforcement
Surveillance
Security

Note: Antenna horizontal and vertical beamwidth measured in free space. Antenna pattern may differ when antenna is placed in concealment. Long axis of antenna corresponds to vertical polarization.

Part Number: 1066-028
Manufacturer: Southwest Antennas
Number of Bands: Single
Type: Omni
Gain: 2.2 dB
Center Frequency 1: 915 MHz
Bandwidth 1: 26 MHz
