Home>> RF Antenna>> 1066-035

1066-035

Southwest Antennas from Southwest Antennas

Antenna, Omni Concealment Antenna, Dual Band 2.1 - 2.5 GHz / 4.4 - 5.0 GHz, 1.8 dBi

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance:

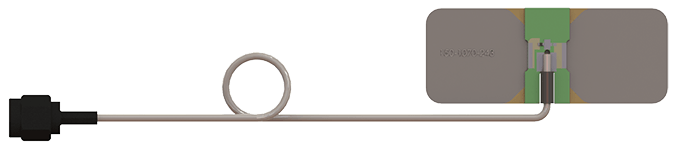

Southwest Antennas Part # 1066-035 is a dual band S/C omni-directional concealment antenna that operates in the 2.1 - 2.5 GHz and 4.4 - 5.0 GHz frequency bands. This product is designed to be integrated inside of other devices. The antenna can be tuned to optimize performance inside of specific concealments. This antenna features 17.25 inches of RF cable and a black chrome SMA(m) RF connector. The antenna operates as a half wave dipole in S-Band while operating as a full wave dipole in C-Band.

Features:

Dual Band Coverage:
- 2.1 - 2.5 GHz
- 4.4 - 5.0 GHz
Half Wave and Full Wave Dipole Design
1.8 dBi Omni Radiation Pattern in S-Band, 3.0 dBi in CBand
Small Form Factor
High Performance
Vertical Polarization
Extremely Light Weight
Easily Concealed
SMA(m) RF Connector
Robust Heat Shrink Strain Relief Epoxied to RF Cable
On-Board Adjustable Matching Circuit Allows for
Antenna Feed Point Tuning for Custom Applications
Ideal for Concealment & Surveillance Applications

Markets and Applications Include:

Military / Defense
Law Enforcement
Surveillance
Security

Part Number: 1066-035
Manufacturer: Southwest Antennas
Number of Bands: Single
Type: Omni
Gain: 1.8 dB
Center Frequency 1: 4700 MHz
Bandwidth 1: 600 MHz
