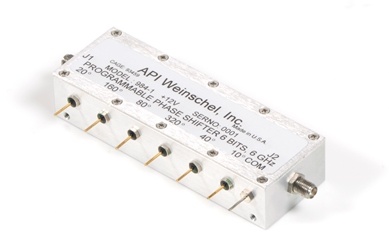

984-1

Phase Shifter from API/Weinschel

Phase Shifter, programmable, 6 bit, dc-6 GHz, 1 W, 630 ° / 10 ° steps

Status: Standard | Data Sheet:

| RoHS Compliance:

API Weinschel’s new 984 series programmable phase shifters operate over the DC to 6 GHz frequency range. Major bits consist of electro-mechanical relays that engages certain delay lines to achieve the required phase shift. This seriesis currently available with a phase shift range from 0° to 630° in 10° steps & 0° to 126° in 2° steps @ 6 GHz.

Features:

Ideal for Automated Test Equipment (ATE), 2G/3G/4G LTE/5G, MIMO, WiMAX, WiFi, engineering/production test lab environments
Excellent insertion loss and performance
Wide frequency range
Control software included

Part Number: 984-1
Manufacturer: Spectrum Control Inc — Weinschel
Type 2: Digital
Frequency Min: 0 GHz
Frequency Max: 6 GHz

No Content Available

Technical Inquiry Request for 984-1 Phase Shifter

Fields marked with * are required.

Product Specifications For 984-1 Phase Shifter

Part Number: 984-1 Manufacturer: Spectrum Control Inc (Weinschel) Product Description: Phase Shifter, Programmable, (630° typical @ 6.0 GHz), DC-6.0 GHz, 1 watt, SMA(F)-SMA(F)
