Home>> RF Coupler>> FPC07180

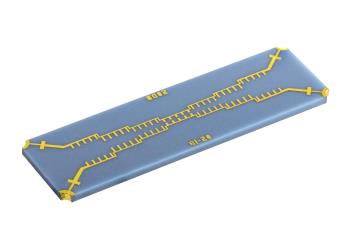

FPC07180

RF Coupler from Knowles — DLI – Dielectric Laboratories

Directional Coupler, 2 to 18 GHz, 20 dB

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The DLI FPC07180 is a high frequency, wide band surface mountable catalog direction coupler integrating high dielectric ceramic materials to provide small size and minimal performance variation over temperature. They are available in symmetrical and Asymmetrical versions.

FEATURES:

Small Size
Fully Shielded Component
Solder Surface Mount Package
Moisture Sensitivity Level: MSL1
Frequency Stable over Temperature
Operating & Storage Temp: -55˚C to +125˚C
Characteristic Impedance: 50Ω

Part Number: FPC07180
Manufacturer: Knowles — DLI – Dielectric Laboratories
Type: Directional
Min Frequency: 2000 MHz
Max Frequency: 18000 MHz
Coupling Factor: 20 dB
CW Power: 5 W
Package Style: SMT

No Content Available

Part Function	Part Number	Description
Evaluation Board	DEB07180 Knowles — DLI – Dielectric Laboratories	Evaluation Board for PDW07180

Technical Inquiry Request for FPC07180 RF Coupler

Fields marked with * are required.

Product Specifications For FPC07180 RF Coupler

Part Number: FPC07180 Manufacturer: DLI – Dielectric Laboratories, Inc. (Knowles) Product Description: Directional Coupler, 2 to 18 GHz, 20 dB

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

531

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

10 - 24

$41.10

25 - 49

$38.60

50 - 99

$35.94

100 - 249

$34.50

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
