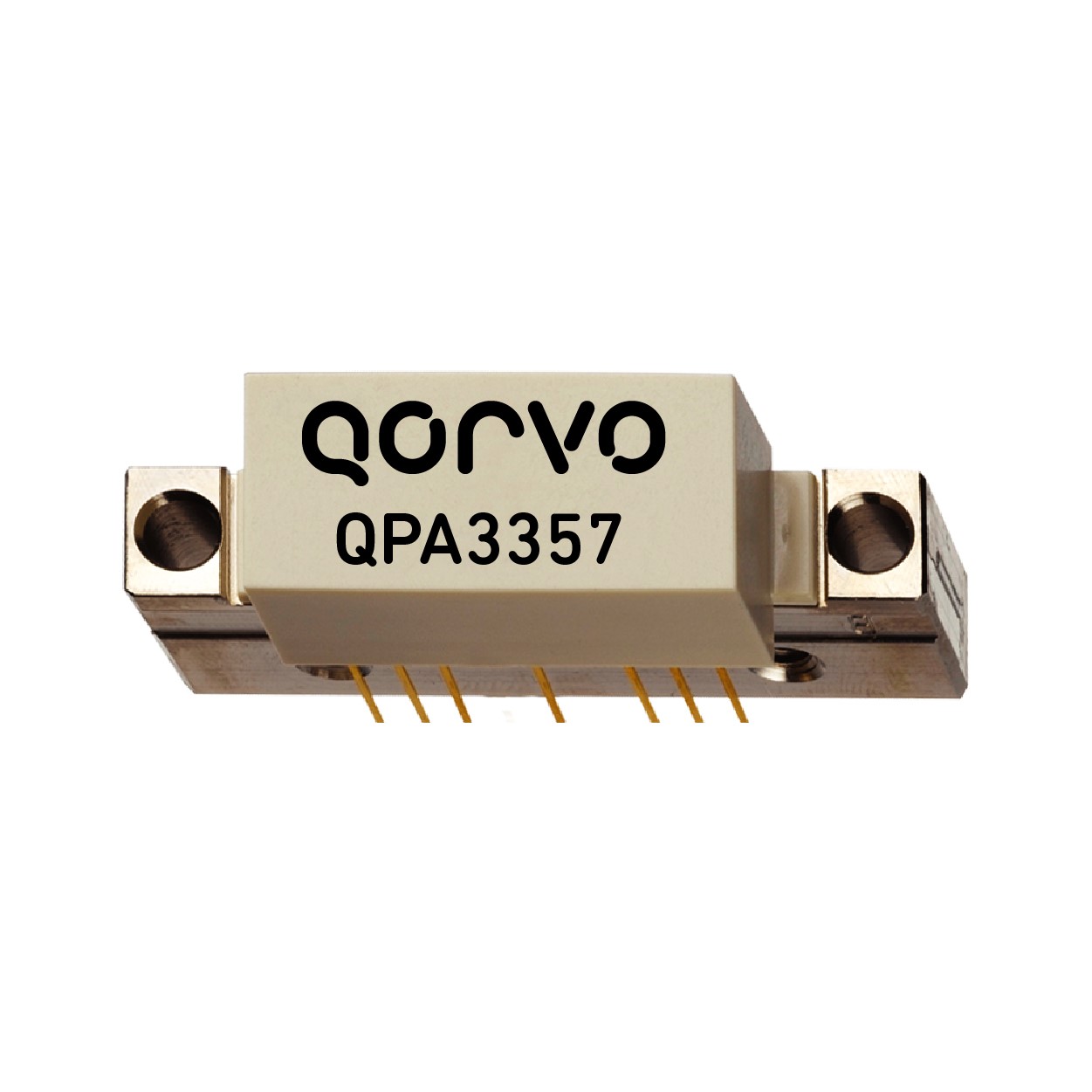

QPA3357

Model Number: QPA3357

CATV Amplifier from Qorvo

Amplifier, CATV, .047 to 1.218 GHz, 28 dB, 57 dBm, SOT-115J

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPA3357 is a GaAs pHEMT/MESFET 75-ohm Doubler RF amplifier in a Hybrid Package, featuring over 28 dB of flat gain and low noise. This IC is designed to support DOCSIS 3.1 applications up to 1218 MHz using a single 24 V supply. The QPA3357 offers low noise and low distortion at high efficiency consuming only 10.5 W.

Part Number: QPA3357
Manufacturer: Qorvo
Frequency Min: 47 MHz
Frequency Max: 1218 MHz
Gain: 28 dB
Supply Voltage\Vd: 24 V
Id: 450 mA
Noise Figure: 4.5 dB
CTB: -83 dB
Xmod: -70 dB
CSO: -81 dB
Package: SOT-115J
Return Loss Input: 16 dB
Return Loss Output: 18 dB

No Content Available

Technical Inquiry Request for QPA3357 CATV Amplifier

Fields marked with * are required.

Product Specifications For QPA3357 CATV Amplifier

Part Number: QPA3357 Manufacturer: Qorvo Product Description: Amplifier, CATV, .047 to 1.218 GHz, 28 dB, 57 dBm, SOT-115J

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

106

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$55.55

25 - 99

$47.45

100 - 249

$41.12

250 - 499

$35.59

500 - 999

$30.64

Request a Pricing Quote for greater quantities
