Home>> RF Attenuator>> QPC3213

QPC3213

Model Number: QPC3213

RF Attenuator from Qorvo

RF Attenuator, Digital Step, .05 to 6.0 GHz, 18 dB, 2-Bit, QFN, 3 x 3 mm

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Qorvo's QPC3213 is a 2-bit digital step attenuator (DSA) that features high linearity over the entire 18 dB gain control range in 6 dB steps. The QPC3213 uses a parallel control interface and has a low insertion loss of 0.8 dB at 2 GHz. The patented circuit architecture provides overshoot-free transient switching performance using a single +3 V to +5 V power supply.

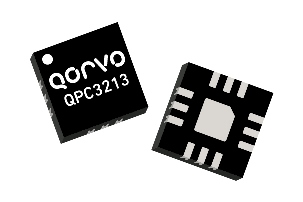

The QPC3213 is available in an industry standard 12 pad 3 mm x 3 mm QFN package that is lead-free and RoHS compliant.

Part Number: QPC3213
Manufacturer: Qorvo
Type: Digital Step
Frequency Min: 50 MHz
Frequency Max: 6000 MHz
Bits: 2
Attn Range: 18 dB
Attenuation Step: 6 dB
Insertion Loss Min: 0.8 dB
IIP3: 55 dBm
Package: QFN 3x3mm
