1000-025

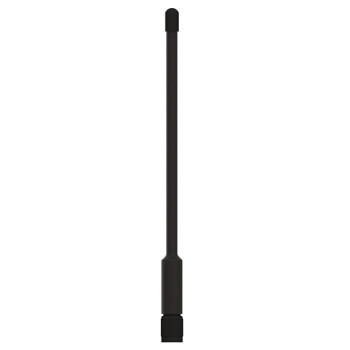

Flexible Monopole Whip Antenna

Antenna, Omni, Monople, Flexible Whip, 335-360 MHz, 2 0 dBi, TNC(M) Black Chrome, 8.49" Length, With Heat Shrink Cover And Cap

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance:

Southwest Antennas range of flexible monopole whip antennas feature a tough, braided aircraft wire element with a sealed heat-shrink exterior and fully potted and waterproof base that contains the antenna's matching components. The resulting antenna is rugged for use in harsh environments yet is flexible enough to bend if the whip is impacted by another object.

The antenna family has been widely deployed on handheld and body worn radio systems by various defence contractors and OEMs in the United States, Australia, Europe and Israel, and can also be deployed on vehicles and in temporary or permanent installations.

The 100-025, utilizes a black chrome TNC male RF connector. Other connector options are available on request.

Part Number: 1000-025
Manufacturer: Southwest Antennas
Number of Bands: Single
Type: Omni
Gain: 2 dB
Center Frequency 1: 345 MHz
Bandwidth 1: 30 MHz

No Content Available

Technical Inquiry Request for 1000-025 RF Antenna

Fields marked with * are required.

Product Specifications For 1000-025 RF Antenna

Part Number: 1000-025 Manufacturer: Southwest Antennas Product Description: Antenna, Omni, Monople, Flexible Whip, 335-360 MHz, 2 0 dBi, TNC(M) Black Chrome, 8.49" Length, With Heat Shrink Cover And Cap
