1001-202

Southwest Antennas from Southwest Antennas

Antenna, Omni, 2.1-2.5 GHz, S Band, Half Wave Dipole, TNC (m),

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance:

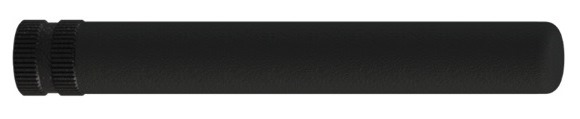

Southwest Antennas Part # 1001-202 is a rugged, small form factor half wave dipole antenna designed to operate across the 2.1 - 2.5 GHz frequency band and offers 2.15 dBi of peak gain. The antenna features a tough black G10 fiberglass radome and a black chrome TNC(m) non-rotating RF connector, making the antenna ideal for low-visibility or tactical applications.
With an overall height of 4.29 inches and weight of only 0.8 oz, the small size of this antenna makes it perfect for handheld or body-worn tactical radio systems, unmanned robotics platforms, and other applications where size and weight are critical.
This antenna provides the same electrical performance as Southwest Antennas’ popular S-Band Ultra-Flex sealed spring antennas, but without the integrated spring.

Features:

Broad Band Coverage
2.1 - 2.5 GHz
50W Power Handling
2.15 dBi Omni Radiation Pattern
Rugged Construction
Low Glare Black Fiberglass Radome
Black Chrome TNC(m) Non-Rotating RF Connector

Applications:

Handheld, body-worn, or vehicle mounted tactical radio systems
Unmanned robotics platforms
Broadcast video
DHS/DOJ Federal Law Enforcement applications
2.4 GHz ISM applications

Part Number: 1001-202
Manufacturer: Southwest Antennas
Number of Bands: Single
Type: Omni
Gain: 2.15 dB
Center Frequency 1: 2300 MHz
Bandwidth 1: 400 MHz
