Part number 18AH-20 Product Type RF Attenuator - Coaxial from Manufacturer Spectrum Control Inc — Inmet

Status: Standard | Data Sheet: pdf link image   | RoHS Compliance: Rohs Compliant

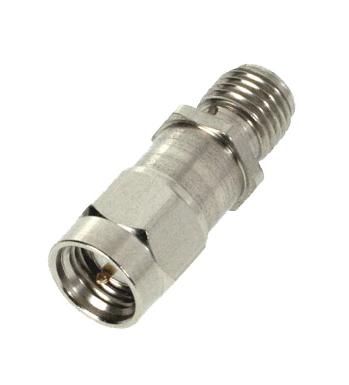

The 18AH series SMA Connectorized RF Coaxial Attenuators from API Inmet operate from DC-18 GHz up to 2 Watts, 50 Ohms.

The SMA Male to SMA Female RF Coaxial Attenuators are available in 0-30 dB increments.

The temperature range is from -65c to +125c.  VSWR from 1.05 to 1.35:1 depending on frequency.

The SMA connector body is made of durable Passivated Stainless Steel which allows for many mating and de-mating’s.

The SMA Male to Female RF Coaxial Attenuator length is .86 inches for 0-12 dB and .99 inches for 13-30 dB.

The SMA Connector hex nut body makes it easy to securely connect the attenuator to a panel, instrument or cable assembly quickly.

Applications for RF Coaxial Attenuators include (but are not limited to), Metrology, Wireless Systems, Broadband System Applications, Mobile Communication Systems, RF Electronic Surveillance Systems, GPS and Navigation Systems, Broadband Multichannel Communications, And RF Environmental Monitoring Systems.

Part Number:
18AH-20
Manufacturer:
Spectrum Control Inc — Inmet
Frequency Min:
0 GHz
Frequency Max:
18 GHz
dB Value:
20 dB
Avg. Power:
2 W
Connector 1:
SMA Male
Connector 2:
SMA Female
Max VSWR:
1.35:1
Accuracy:
0.5 ±dB
No Content Available

Technical Inquiry Request for 18AH-20 RF Attenuator - Coaxial

Fields marked with * are required.
Product Specifications For 18AH-20 RF Attenuator - Coaxial
Design Information
Contact Information


Availability
In Stock
179
Need products sooner?
Quantity
Pricing
Quantity
Price
1 - 9
$46.63
