Home>> RF Attenuator - Coaxial>> 41-20-12

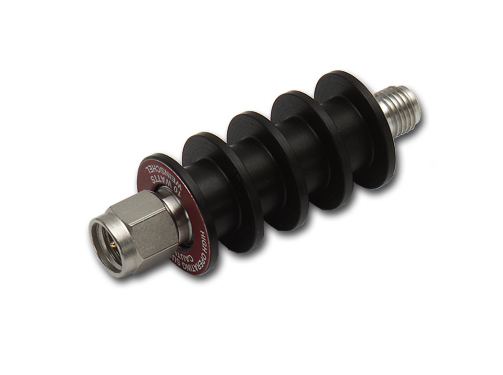

41-20-12

RF Attenuator - Coaxial from Spectrum Control Inc — Weinschel

Attenuator, Fixed, 0 to 18 GHz, 20 dB, SMA (F/M)

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: 41-20-12
Manufacturer: Spectrum Control Inc — Weinschel
Frequency Min: 0 GHz
Frequency Max: 18 GHz
dB Value: 20 dB
Avg. Power: 10 W
Connector 1: SMA Female
Connector 2: SMA Male
Max VSWR: 1.35:1
Accuracy: 0.7 ±dB
