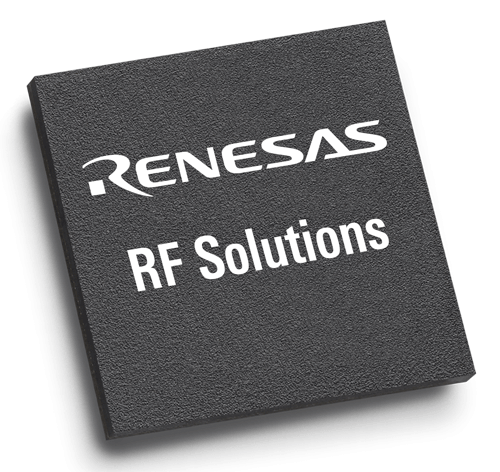

5P83905PGGK

Buffer from Renesas

1.8 V to 3.3 V 1:6 Crystal Input to LVCMOS Output High-Performance Clock Fanout Buffer with OE

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The 5P83905 is a high-performance, 1-to-6 crystal input to LVCMOS fanout buffer with output enable pins. This device accepts a fundamental mode crystal from 10 MHz to 40 MHz and outputs LVCMOS clocks with best-in-class phase noise performance.

The 5P83905 features a synchronous glitch-free Output Enable function to eliminate any intermediate incorrect output clock cycles when enabling or disabling outputs. It comes in standard TSSOP packages or small QFN packages and can operate from 1.8 V to 3.3 V supplies.

Features

Six copies of LVCMOS output clocks with best-in-class phase noise performance
Phase Noise:
Offset Noise Power (3.3 V)
- 100 Hz: -131 dBc/Hz
- 1 KHz: -145 dBc/Hz
- 10 KHz: -154 dBc/Hz
- 100 KHz: -161 dBc/Hz
Operating power supply modes:
- Full 3.3 V, 2.5 V, 1.8 V
- Mixed 3.3 V core / 2.5 V output operating supply
- Mixed 3.3 V core / 1.8 V output operating supply
- Mixed 2.5 V core / 1.8 V output operating supply
Crystal Oscillator Interface
Synchronous Output Enable
Packaged in 16-pin TSSOP and QFN packages
Extended temperature range (-40°C to +105°C)

Part Number: 5P83905PGGK
Manufacturer: Renesas
