Home>> RF Attenuator - Coaxial>> 66-40-11

66-40-11

RF Attenuator - Coaxial from Spectrum Control Inc — Weinschel

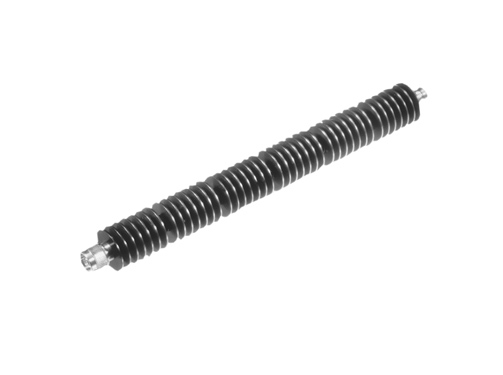

Attenuator, Fixed, 40dB, DC-18.0 GHz, 150 watts, 3.5mm(F)-3.5mm(F)

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: 66-40-11
Manufacturer: Spectrum Control Inc — Weinschel
Frequency Min: 0 GHz
Frequency Max: 18 GHz
dB Value: 40 dB
Avg. Power: 150 W
Connector 1: 3.5mm Female
Connector 2: 3.5mm Female
Max VSWR: 1.6:1
Length: 13.3 in
Accuracy: 1.5 ±dB
