Home>> RF Power Divider/Combiner>> 808-6-1.700V

808-6-1.700V

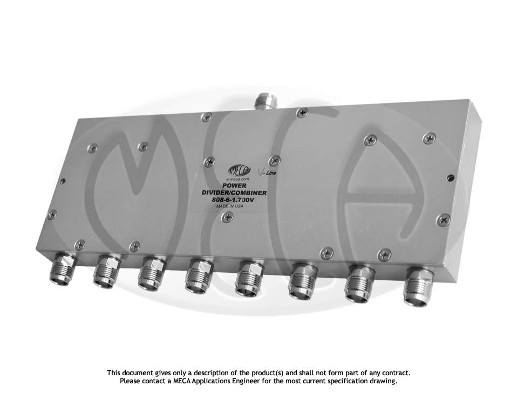

RF Power Divider/Combiner from MECA

Power Divider, 8-way, TNC-F, 0.698-2.700GHz, 40 Watts

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: 808-6-1.700V
Manufacturer: MECA
Type: 8-Way
Min Frequency: 698 MHz
Max Frequency: 2700 MHz
CW Power: 40 W
Insertion Loss: 1.4 dB
Package Style: Connectorized
Connector Type: TNC(f)
Isolation (Typ) : 20 dB

No Content Available

Technical Inquiry Request for 808-6-1.700V RF Power Divider/Combiner

Fields marked with * are required.

Product Specifications For 808-6-1.700V RF Power Divider/Combiner

Part Number: 808-6-1.700V Manufacturer: MECA Electronics, Inc. Product Description: Power Divider, 8-way, TNC-F, 0.698-2.700GHz, 40 Watts

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

$339.75

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
