885136

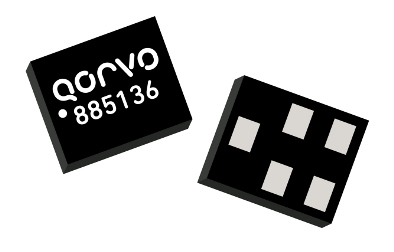

Model Number: 885136

RF Filter - Band Pass from Qorvo

Filter, BAW, 2437 MHz, 69 MHz BW, 1.1 x .9 mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The Qorvo 885136 is a high-performance, high power Bulk Acoustic Wave (BAW) band-pass filter with extremely steep skirts, simultaneously exhibiting low loss in the WiFi band and high rejection in the band-edge and adjacent LTE /TD-LTE bands.
The 885136 enables coexistence of WiFi and LTE signals within the same device or in close proximity to one another. Its unique power handling capability allows for implementation into high performance high power access points and small cell base stations.
The 885136 uses common module packaging techniques to achieve the industry standard 1.1 x 0.9 x 0.50 mm footprint.

Part Number: 885136
Manufacturer: Qorvo
Filtering Technology: BAW
Center Frequency: 2437 MHz
Bandwidth: 69 MHz
Package: SMT
Length: 1.1 mm
Width: 0.9 mm
Height: 0.4 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	885136-EVB Qorvo	Evaluation Board for 885136

Technical Inquiry Request for 885136 RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For 885136 RF Filter - Band Pass

Part Number: 885136 Manufacturer: Qorvo Product Description: Filter, BAW, 2437 MHz, 69 MHz BW, 1.1 x .9 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

5150

On Order

3000

by 11/16/2023

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$1.93

25 - 99

$1.75

100 - 249

$1.57

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
