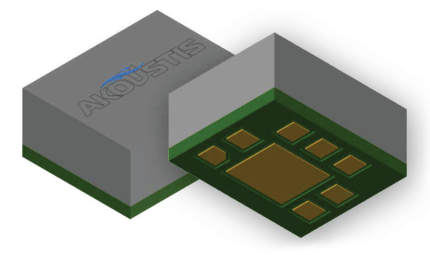

Part number A10149 Product Type RF Filter - Band Pass from Manufacturer Akoustis

A10149 4.9 GHz 5G Coexistence BAW Filter

RF Filter - Band Pass from Akoustis

Filter, BAW, 4.850 GHz, 100 MHz BW

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Akoustis’ A10149 is a high performance, ultra-small passband BAW RF Filter for use in 4.9 GHz 5G applications covering 100 MHz of 5G n79 band. The A10149 utilizes Akoustis’ patented, XBAW technology which provides leading RF filter performance. This BAW RF filter provides low insertion loss and meets the stringent rejection requirements enabling coexistence with 5G n77 and WiFi U-NII 1-3 bands. This device exhibits high-power handling capabilities necessary for demanding power requirements of the latest small cell requirements. The A10149 uses standard ceramic packaging and is compatible with high volume, lead-free SMT soldering processes.

Ultra small form factor 2.5mm x 2.0mm x 0.8mm
Single ended Tx/Rx ports.
High rejection enables coexistence with adjacent 5G n77 and WiFi UNII bands
High power rating, maximum +29dBm
Low insertion loss passband filter
Performance over -40 C to +85C
RoHS compliant, Pb-free package

Part Number: A10149
Manufacturer: Akoustis
Filtering Technology: BAW
Center Frequency: 4850 MHz
Bandwidth: 100 MHz
Insertion Loss TYP: 1.7 dB
Return Loss Typ: 15 dB
Low Side Rejection: 40 dB
Low Side Rejection: 4700 MHz
High Side Rejection: 45 dB
High Side Rejection: 5150 MHz
Package: SMT
Length: 2.5 mm
Width: 2 mm
Height: 1 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	A10149EVB Akoustis	Evaluation Board for A10149
