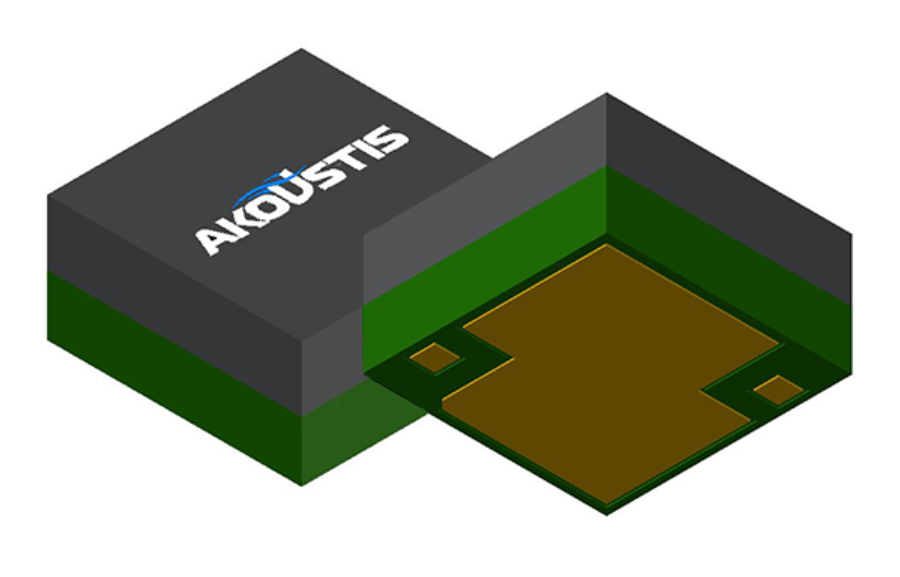

Part number A10165 Product Type RF Filter - Band Pass from Manufacturer Akoustis

A10165 6.5 GHz WiFi 6E Coexistence BAW Filter

RF Filter - Band Pass from Akoustis

Filter, BAW, 6500 MHz, 1180 MHz BW

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Akoustis’ A10165 is a high-performance, ultra-wide bandwidth BAW RF Filter for use in WiFi 6E applications covering U-NII-5 thru U-NII-8 bands. A10165 utilizes Akoustis’ patented, XBAW™ technology which provides leading RF filter performance. This BAW RF filter provides low insertion loss and meets the stringent rejection requirements enabling coexistence with U-NII-1 thru 3. This device exhibits high-power handling capabilities necessary for demanding power requirements of the latest WiFi 6E standards. A10165 is a fully integrated, 50Ω module using standard laminate packaging and is compatible with high volume, lead-free SMT soldering processes.

Small form factor 3.5mm x 3.5mm x 1.74mm
Single-ended Tx/Rx ports.
Ultra-wide passband covering 1180MHz
High rejection enables coexistence with adjacent WiFi UNII bands
High power rating, maximum +28dBm
Low insertion loss bandpass filter
Performance over -40 C to +85C
RoHS compliant, Pb-free package

Part Number: A10165
Manufacturer: Akoustis
Filtering Technology: BAW
Center Frequency: 6535 MHz
Bandwidth: 1180 MHz
Insertion Loss TYP: 1.8 dB
Return Loss Typ: 15 dB
Low Side Rejection: 40 dB
Low Side Rejection: 5835 MHz
High Side Rejection: 14 dB
High Side Rejection: 8500 MHz
Package: SMT
Length: 3.5 mm
Width: 3.5 mm
Height: 1.73 mm

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	A10165EVB Akoustis	Evaluation Board for A10165
