Home>> RF Filter - Band Pass>> A10252

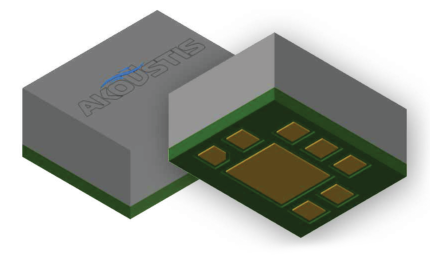

A10252

RF Filter - Band Pass from Akoustis

Filter, BAW, 5.2 GHz, 160 MHz BW

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Akoustis’ A10252 is a high performance, ultra-small bandpass BAW RF Filter for use in 5.2GHz WiFi applications covering U-NII 1 plus 2A bands. A10252 utilizes Akoustis’ patented, XBAW technology which provides leading RF filter performance. This BAW RF filter provides low insertion loss and meets the stringent rejection requirements enabling coexistence with U-NII 2C and 3. This device exhibits high-power handling capabilities necessary for demanding power requirements of the latest WiFi standards. A10252 uses standard laminate packaging and is compatible with high volume, lead-free SMT soldering processes.

Ultra small form factor 2.5mm x 2.0mm x 1.0mm Single ended Tx/Rx ports. High rejection enables coexistence with adjacent WiFi UNII bands High power rating, maximum +28dBm Low insertion loss passband filter Performance over -40 C to +85C RoHS compliant, Pb-free package

Part Number: A10252
Manufacturer: Akoustis
Filtering Technology: BAW
Center Frequency: 5250 MHz
Bandwidth: 160 MHz
Insertion Loss TYP: 1.5 dB
Return Loss Typ: 16 dB
Low Side Rejection: 37 dB
Low Side Rejection: 3700 MHz
High Side Rejection: 55 dB
High Side Rejection: 5490 MHz
Package: SMT
Length: 2.5 mm
Width: 2 mm
Height: 1 mm

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	A10252EVB Akoustis	Evaluation Board for A10252

Technical Inquiry Request for A10252 RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For A10252 RF Filter - Band Pass

Part Number: A10252 Manufacturer: Akoustis Product Description: Filter, BAW, 5.2 GHz, 160 MHz BW

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$4.62

25 - 99

$4.29

Request a Pricing Quote for greater quantities
