Home>> RF Filter - Band Pass>> A10256

A10256

RF Filter - Band Pass from Akoustis

Filter, BAW, 5.6 GHz, 345 MHz BW

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Akoustis’ A10256 is a high performance, ultra-wide bandwidth BAW RF Filter for use in 5.6GHz WiFi
applications covering U-NII-2C plus U-NII-3 bands. A10256 utilizes Akoustis’ patented, XBAW technology to
deliver differentiated filter performance. This BAW RF filter provides very low insertion loss and meets the
stringent rejection requirements enabling coexistence with U-NII-1 and 2A. This device exhibits high-power
handling capabilities necessary for demanding power requirements of the latest WiFi standards. A10256 uses
standard laminate packaging and is compatible with high volume, lead-free SMT soldering processes.

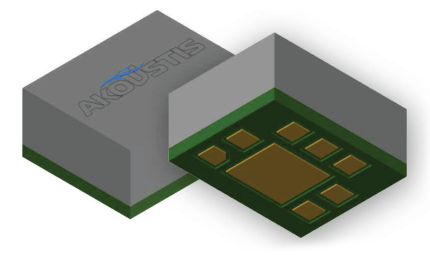

Ultra small form factor 2.5mm x 2.0mm x 1.0mm
Single ended Tx/Rx ports.
Ultra-wide passband covering 345MHz
High rejection enables coexistence with adjacent WiFi UNII bands
High power rating, maximum +30dBm
Low insertion loss passband filter
Performance over -40 C to +85C
RoHS compliant, Pb-free package

Part Number: A10256
Manufacturer: Akoustis
Filtering Technology: BAW
Center Frequency: 5665 MHz
Bandwidth: 345 MHz
Insertion Loss TYP: 1.4 dB
Return Loss Typ: 17 dB
Low Side Rejection: 51 dB
Low Side Rejection: 5330 MHz
High Side Rejection: 22 dB
High Side Rejection: 5950 MHz
Package: SMT
Length: 2.5 mm
Width: 2 mm
Height: 1 mm

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	A10256EVB Akoustis	Evaluation Board for A10256
