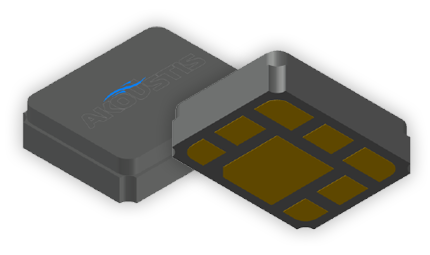

Part number A10335 Product Type RF Filter - Band Pass from Manufacturer Akoustis

A10335 3.5 GHz 5G Coexistence BAW Filter

RF Filter - Band Pass from Akoustis

Filter, BAW, 3450 MHz, 300 MHz BW

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Akoustis’ A10335 is a high performance, ultra-small bandpass BAW RF Filter for use in 5G infrastructure applications covering 300 MHz of 5G n78/77 band. A10335 utilizes Akoustis’ patented, XBAW technology which provides leading RF filter performance. This BAW RF filter provides low insertion loss and meets the stringent rejection requirements enabling coexistence with 4G LTE and 5G bands. This device exhibits high-power handling capabilities necessary for demanding power requirements of the latest 5G infrastructure requirements. A10335 uses standard hermetic sealed ceramic packaging and is compatible with high volume, lead-free SMT soldering processes.

Small form factor 2.5mm x 2.0mm x 0.8mm
Single ended Tx/Rx ports.
High rejection enables coexistence with adjacent 4G LTE & 5G bands
High power rating, maximum +30 dBm
Low insertion loss passband filter
Performance over -40 C to +85C
RoHS compliant

Part Number: A10335
Manufacturer: Akoustis
Filtering Technology: BAW
Center Frequency: 3450 MHz
Bandwidth: 300 MHz
Insertion Loss TYP: 1.5 dB
Return Loss Typ: 16 dB
Low Side Rejection: 12 dB
Low Side Rejection: 3270 MHz
High Side Rejection: 15 dB
High Side Rejection: 3630 MHz
Package: SMT
Length: 2.5 mm
Width: 2 mm
Height: 0.77 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	A10335EVB Akoustis	Evaluation Board for A10335
