ACT41000+ACT43750REF01

Evaluation Board from RFMW Power Designs

Qorvo ACT41000+ACT43750 GaN PA biasing ref design

Status: Standard | Data Sheet:

| RoHS Compliance:

User Guide Available: For a copy of the ACT41000+ACT43750 REF01 User Guide, click here.

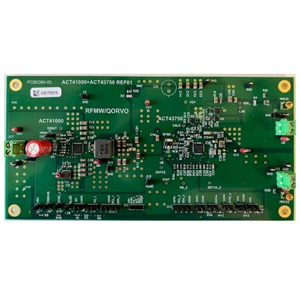

The ACT41000+ACT43750REF01 combines the functionality of the ACT41000 RF point of load (RFPoL) regulator and the ACT43750 RFPoL drain-switch driver / gate bias regulator to provide a complete GaN RFPA biasing solution including proper sequencing and autocalibration to optimize the performance.

The design performs proper bias sequencing to prevent damage, and the autocalibration feature adjusts the gate drive voltage to match the optimal IDQ of the specific RFPA. It is an optimum solution for radio frequency (RF) power amplifiers (PAs) that demand fast transient, high current pulsed loads with maximum efficiency.

This EVK ships as a standalone board that is specifically configured for the QPA2612 RFPA but can be reconfigured and used with many other GaN RFPA’s with voltages up to 24V and currents up to 4A. All data is taken with the QPA2612.

Part Number: ACT41000+ACT43750REF01
Manufacturer: RFMW Power Designs

No Content Available

Part Function	Part Number	Description
Complementary Product	ACT41000-104 Qorvo	DC/DC Converter, 22.0 V, 3.5 A, QFN,32 Pin
Complementary Product	ACT43750-101 Qorvo	RFPOL Drain-switch Driver / Gate-bias Regulator Automatic Power GaN/GaAs Sequencing and Bias Calibration
Complementary Product	QPA2966 Qorvo	RF Amplifier, GaN, 2 to 18 GHz, Flange CP Pkgd Part

Technical Inquiry Request for ACT41000+ACT43750REF01 Evaluation Board

Fields marked with * are required.

Product Specifications For ACT41000+ACT43750REF01 Evaluation Board

Part Number: ACT41000+ACT43750REF01 Manufacturer: RFMW Power Designs Product Description: Qorvo ACT41000+ACT43750 GaN PA biasing ref design
