ADM-11122PSM

Surface Mount from Marki Microwave

2–20 GHz, Wideband High OIP2 Amplifier

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

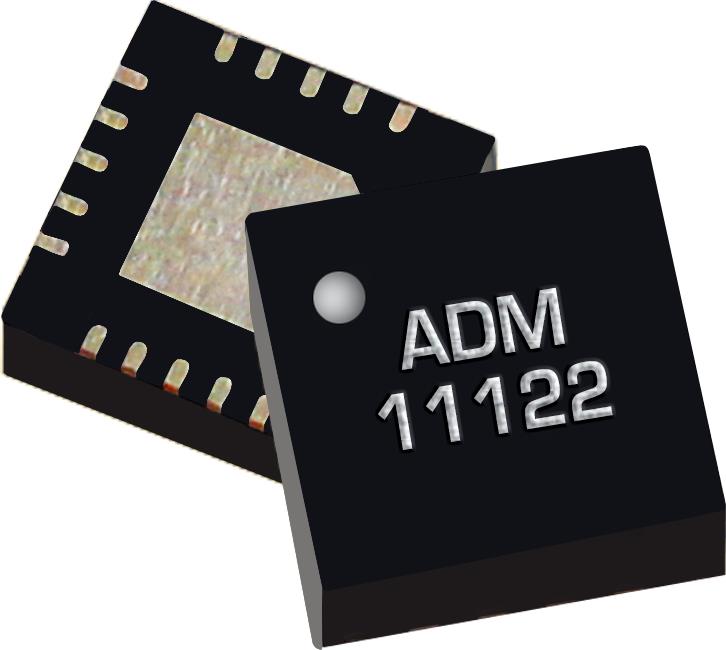

The ADM-11122PSM is a surface-mount, wideband, high output IP2, gain block amplifier designed to operate from 2 to 20 GHz. It provides 19 dB typical small-signal gain across the band, along with 4.2 dB typical noise figure and 13.7 dBm typical output P1dB. The amplifier also delivers 55 dBm typical output IP2, making it well suited for direct-conversion EW systems and other wideband signal chain applications where gain and second-order linearity are critical. The device is internally matched to 50 ohms at both input and output, and operates with a +4 V supply voltage, drawing just 84 mA. The ADM-11122PSM is packaged in a compact 4 x 4 mm plastic QFN for easy integration with automated assembly processes.

Part Number: ADM-11122PSM
Manufacturer: Marki Microwave
Type: Broadband, Gain Block
Frequency Min: 2 GHz
Frequency Max: 12 GHz
P1dB: 13.7 dBm
Psat: 14.7 dBm
Gain: 19 dB
IP3: 26 dBm
Supply Voltage \ Vd Min: 3 V
Supply Voltage \ Vd Max: 5 V
Noise Figure: 4.2 dB
Return Loss Input: 10 dB
Return Loss Output: 10 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-ADM-11122P Marki Microwave	Evaluation Board for ADM-11122PSM

Technical Inquiry Request for ADM-11122PSM Amplifier

Fields marked with * are required.

Product Specifications For ADM-11122PSM Amplifier

Part Number: ADM-11122PSM Manufacturer: Marki Microwave Product Description: Amplifier, Gain Block, 2 to 20 GHz, 19 dB, +13.7 dBm, SMT
