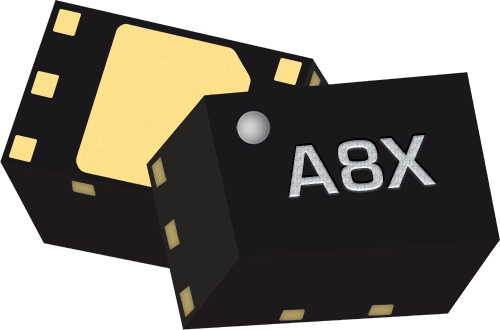

ADM-8350PSM

Surface Mount from Marki Microwave

Amplifier, HDR, Gain Block, 0.09 to 6 GHz, 23 dB, +22 dBm, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The ADM-8350PSM is a high-linearity, low noise amplifier capable of providing +22 dBm output power up to 6 GHz. The ADM-8350PSM can serve either as a linear signal amplifier, or as a saturated driver amplifier for H- or S-diode mixers. The amplifier has excellent return losses, gain flatness, and high IP3. The ADM-8350PSM is similar to the ADM-8095. The main difference is that the IP3 is higher for the ADM-8350, but the current consumption is about 25% higher.

Part Number: ADM-8350PSM
Manufacturer: Marki Microwave
Type: Gain Block, LO Drive
Frequency Min: 0.09 GHz
Frequency Max: 6 GHz
P1dB: 22 dBm
Psat: 22 dBm
Gain: 23 dB
IP3: 39.5 dBm
Noise Figure: 2.5 dB
Package: SMT
Return Loss Input: 15 dB
Return Loss Output: 14 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-ADM-8350P Marki Microwave	Evaluation Board for ADM-8350PSM
