Home>> Amplifier>> ADM-8625PSM

ADM-8625PSM

Surface Mount from Marki Microwave

Amplifier, HDR, Gain Block, 0.75 to 8 GHz, 18 dB, +27 dBm, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

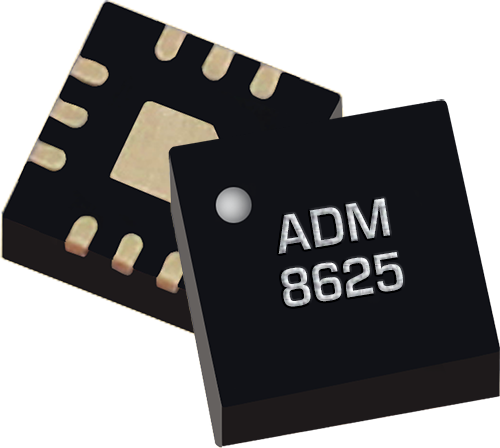

The ADM-8625PSM is a high-linearity low noise amplifier capable of providing 18 dB gain, 1.5 dB noise figure and +27 dBm OIP3 from 750 MHz to 8 GHz. The ADM-8625PSM can serve either as a linear signal amplifier, or as a saturated driver amplifier for H- or S-diode mixers. The amplifier features excellent return losses, gain flatness and high dynamic range making it suitable for RF front-end applications. The size and low power consumption of the ADM-8625PSM make it ideal for low SWaP applications. The ADM-8625PSM is available in a compact 3x3 mm QFN.

Part Number: ADM-8625PSM
Manufacturer: Marki Microwave
Type: Gain Block
Frequency Min: 0.75 GHz
Frequency Max: 8 GHz
P1dB: 17 dBm
Psat: 19 dBm
Gain: 18 dB
IP3: 27 dBm
Supply Voltage \ Vd Min: 3 V
Supply Voltage \ Vd Max: 6 V
Quiescent Current \ Id: 49 mA
Noise Figure: 1.5 dB
Return Loss Input: 15 dB
Return Loss Output: 16 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-ADM-8625P Marki Microwave	Evaluation Board for ADM-8625PSM

Technical Inquiry Request for ADM-8625PSM Amplifier

Fields marked with * are required.

Product Specifications For ADM-8625PSM Amplifier

Part Number: ADM-8625PSM Manufacturer: Marki Microwave Product Description: Amplifier, HDR, Gain Block, 0.75 to 8 GHz, 18 dB, +27 dBm, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$29.20

10 - 24

$26.86

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
