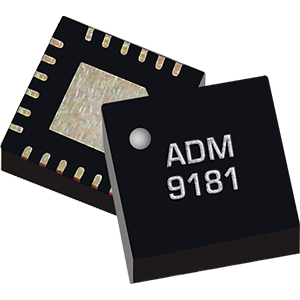

ADM-9181PSM

Surface Mount from Marki Microwave

Amplifier, Distributed, Driver, 0.1 to 26 GHz, 14.5 dB, +19 dBm, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The ADM-9181PSM is a wideband distributed amplifier capable of providing 14.5 dB gain and +31 dBm OIP3 from 100MHz to 22 GHz. The ADM-9181PSM is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. The amplifier has excellent return losses and gain flatness.

Part Number: ADM-9181PSM
Manufacturer: Marki Microwave
Type: Amplifiers
Frequency Min: 0.1 GHz
Frequency Max: 26 GHz
P1dB: 19 dBm
Gain: 14.5 dB
IP3: 31 dBm
Supply Voltage \ Vd Min: 4 V
Supply Voltage \ Vd Max: 6 V
Quiescent Current \ Id: 190 mA
Noise Figure: 3.2 dB
Return Loss Input: 15 dB
Return Loss Output: 18 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-ADM-9181P Marki Microwave	Evaluation Board for ADM-9181PSM

Technical Inquiry Request for ADM-9181PSM Amplifier

Fields marked with * are required.

Product Specifications For ADM-9181PSM Amplifier

Part Number: ADM-9181PSM Manufacturer: Marki Microwave Product Description: Amplifier, Distributed, Driver, 0.1 to 26 GHz, 14.5 dB, +19 dBm, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$146.40

5 - 9

$122.00

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
