Home>> Equalizer - Frequency/Gain>> AEQ05472

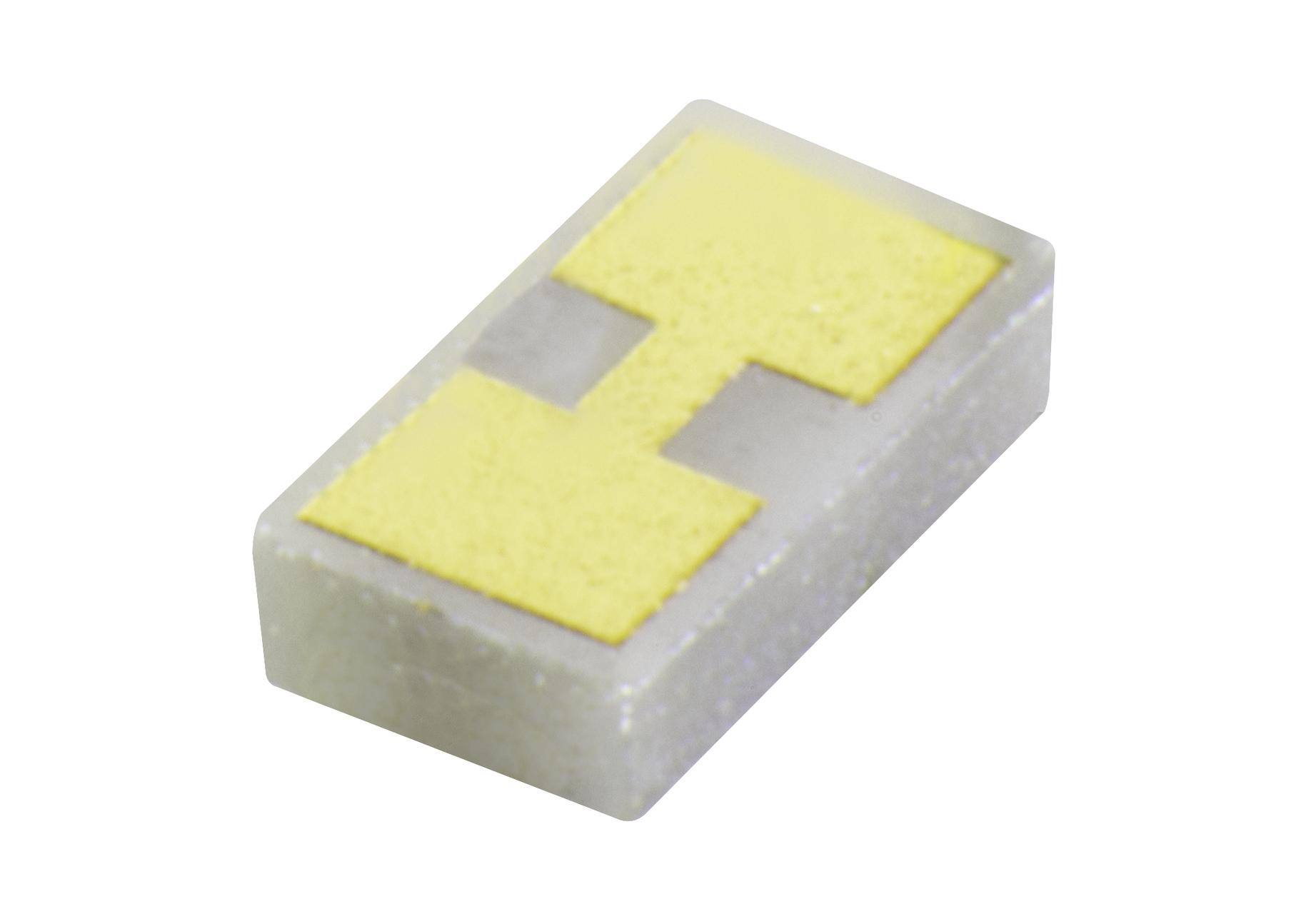

AEQ05472

Equalizer - Frequency/Gain from Knowles — DLI – Dielectric Laboratories

DLI: AEQ Gain Equalizers, commercial grade

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

DLI’s Gain Equalizers are designed as a small, low cost solution to your gain slope challenges. These equalizer designs employ a monolithic construction with precision thin-film conductor and resistor films with proprietary high dielectric constant ceramics for superior RF performance and repeatability. Components are well suited for use with pick and place equipment.

Applications

Broadband Microwave Modules; EW, ECM, ECCM
Equalizer is utilized as a compensation circuit to correct for a loss slope created by other elements within a circuit such as in amplifier stages.

Benefits

Low Excess Insertion Loss
Footprint interchangeable; gain slopes from 1 to 3.5 dB
Conductive Epoxy and solder SMT mountable
Characteristic Impedance: 50Ω
Operating & Storage Temp: -55˚C to +125˚C
Moisture Sensitivity Level: MSL1
No Ground Connection Required
Superior, repeatable microwave performance

Part Number: AEQ05472
Manufacturer: Knowles — DLI – Dielectric Laboratories

No Content Available

Technical Inquiry Request for AEQ05472 Equalizer - Frequency/Gain

Fields marked with * are required.

Product Specifications For AEQ05472 Equalizer - Frequency/Gain

Part Number: AEQ05472 Manufacturer: DLI – Dielectric Laboratories, Inc. (Knowles) Product Description: DLI: AEQ Gain Equalizers, commercial grade

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

338

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$6.17

25 - 99

$6.00

100 - 249

$5.83

250 - 299

$5.76

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
