Home>> RF Filter - Band Pass>> AKF-1336

Part number AKF-1336 Product Type RF Filter - Band Pass from Manufacturer Akoustis

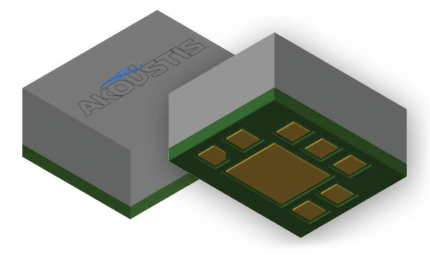

AKF-1336 3.6 GHz CBRS Bandpass BAW Filter

RF Filter - Band Pass from Akoustis

Filter, BAW, 3625 MHz, 150 MHz BW

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance: Rohs Compliant

Akoustis’ AKF-1336 is a high performance, ultra-small passband BAW Filter targeting 5G B48 Citizen Broadcast Radio Solutions (CBRS) infrastructure applications. The AKF-1336 utilizes Akoustis’ XBAW technology which provides leading RF filter performance. This BAW filter provides 150 MHz bandwidth, low insertion loss at 3.6 GHz and high out of band attenuation. The AKF-1336 uses standard ceramic packaging and is compatible with high volume, lead-free SMT soldering processes.

Ultra small form factor 2.5mm x 2.0mm x 0.8mm
Single ended 50 Ohm Ant, Tx/Rx ports
High out of band attenuation
High power handling, maximum +30dBm
Low insertion loss 150 MHz passband filter
Performance -40 C to +85C

Part Number: AKF-1336
Manufacturer: Akoustis
Filtering Technology: BAW
Center Frequency: 3625 MHz
Bandwidth: 150 MHz
Insertion Loss TYP: 1.5 dB
Return Loss Typ: 16 dB
Low Side Rejection: 15 dB
Low Side Rejection: 3530 MHz
High Side Rejection: 15 dB
High Side Rejection: 3720 MHz
Package: SMT
Length: 2.5 mm
Width: 2 mm
Height: 0.8 mm
