Home>> Amplifier>> AMM-8211PSM

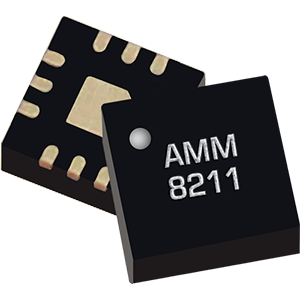

AMM-8211PSM

Surface Mount from Marki Microwave

Amplifier, Driver, 22 to 57 GHz, 13 dB, +19 dBm, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The AMM-8211PSM is a general-purpose broadband MMIC driver amplifier that provides up to +21 dBm output power suitable for driving Marki H or L diode mixers at 22-57 GHz and S diode mixers from 25-50 GHz. This amplifier offers a high +26dBm OIP3 and is offered in a small 3x3mm QFN package.

Part Number: AMM-8211PSM
Manufacturer: Marki Microwave
Export Status:
Type: Amplifiers, LO Drive
Frequency Min: 22 GHz
Frequency Max: 57 GHz
P1dB: 19 dBm
Psat: 11 dBm
Gain: 13 dB
IP3: 27 dBm
Supply Voltage \ Vd Min: 2.5 V
Supply Voltage \ Vd Max: 3 V
Quiescent Current \ Id: 200 mA
Noise Figure: 6.3 dB
Return Loss Input: 14 dB
Return Loss Output: 16 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-AMM-8211P Marki Microwave	Evaluation Board for AMM-8211PSM

Technical Inquiry Request for AMM-8211PSM Amplifier

Fields marked with * are required.

Product Specifications For AMM-8211PSM Amplifier

Part Number: AMM-8211PSM Manufacturer: Marki Microwave Product Description: Amplifier, Driver, 22 to 57 GHz, 13 dB, +19 dBm, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$214.56

5 - 9

$178.80

Request a Pricing Quote for greater quantities
