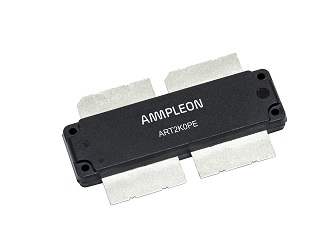

ART2K0PEY

RF Power Transistor from Ampleon

RF Power Transistor, 0.001 to 0.45 GHz, 2000 W, 27.7 dB, 65 V, OMP1230, LDMOS

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Ampleon's ART2K0PE 2000 W advanced ruggedness LDMOS power transistor for industrial, scientific and medical applications in the HF to 450 MHz band.

Features and benefits:

High breakdown voltage enables class E operation up to VDS=50V
Qualified up to a maximum of VDS=65V
Characterized from 30 V to 65 V for extended power range
Easy power control
Integrated dual sided ESD protection enables class C operation and complete switch off of the transistor
Excellent ruggedness with no device degradation
High efficiency
Excellent thermal stability
Designed for broadband operation

Applications:

Industrial, scientific and medical applications

Plasma generators
MRI systems
Particle accelerators

Broadcast

FM radio
VHF TV

Communications

Non cellular communications
UHF radar

Part Number: ART2K0PEY
Manufacturer: Ampleon
Frequency Min: 0.001 GHz
Frequency Max: 0.45 GHz
Output Power: 2000 W
Gain: 27.7 dB
% Typ Efficiency: 71.7
Supply Voltage: 65 V
Package: OMP1230-4F-1
Process: LDMOS
Type: RF Power Discrete Transistors

No Content Available

Part Function	Part Number	Description
Complementary Product	ART2K0FEU Ampleon	RF Power Transistor, 0.001 to 0.40 GHz, 2000 W, 28.4 dB, 65 V, SOT539AN, LDMOS
Complementary Product	ART2K0PEGY Ampleon	RF Power Transistor, 0.001 to 0.45 GHz, 2000 W, 27.7 dB, 65 V, OMP1230, LDMOS
Complementary Product	ART2K0PEZ Ampleon	RF Power Transistor, 0.001 to 0.45 GHz, 2000 W, 27.7 dB, 65 V, OMP1230, LDMOS
Complementary Product	ART35FEU Ampleon	RF Power Transistor, 0.001 to 0.65 GHz, 35 W, 31 dB, 65 V, SOT467C, LDMOS

Technical Inquiry Request for ART2K0PEY RF Power Transistor

Fields marked with * are required.

Product Specifications For ART2K0PEY RF Power Transistor

Part Number: ART2K0PEY Manufacturer: Ampleon USA Inc. Product Description: RF Power Transistor, 0.001 to 0.45 GHz, 2000 W, 27.7 dB, 65 V, OMP1230, LDMOS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$195.70

10 - 24

$187.66

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
