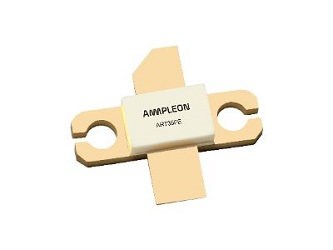

ART35FEU

RF Power Transistor from Ampleon

RF Power Transistor, 0.001 to 0.65 GHz, 35 W, 31 dB, 65 V, SOT467C, LDMOS

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Based on Advanced Rugged Technology (ART) a 35 W LDMOS transistor for ISM application has been designed, the ART35FE. This unmatched device covers a frequency range of 1 MHz to 650 MHz.

Features and benefits:

High breakdown voltage enables class E operation up to VDS = 48 V
Qualified up to a maximum of VDS = 65 V
Characterized from 30 V to 65 V to support a wide range of applications
Easy power control
Integrated dual sided ESD protection enables class C operation and complete switch off of the transistor
Excellent ruggedness with no device degradation
High efficiency
Excellent thermal stability
Designed for broadband operation

Applications:

Industrial, scientific and medical applications
Plasma generators
MRI systems
CO2 lasers
Particle accelerators

Broadcast
FM radio
VHF TV

Radar
Non cellular communications
UHF radar

Part Number: ART35FEU
Manufacturer: Ampleon
Frequency Min: 0.001 GHz
Frequency Max: 0.65 GHz
Output Power: 35 W
Gain: 31 dB
% Typ Efficiency: 70.5
Supply Voltage: 65 V
Package: SOT467C
Process: LDMOS
Type: RF Power Discrete Transistors

No Content Available

Part Function	Part Number	Description
Evaluation Board	ART35FE/RFPOWERDEMO Ampleon	Evaluation Board for ART35FE
