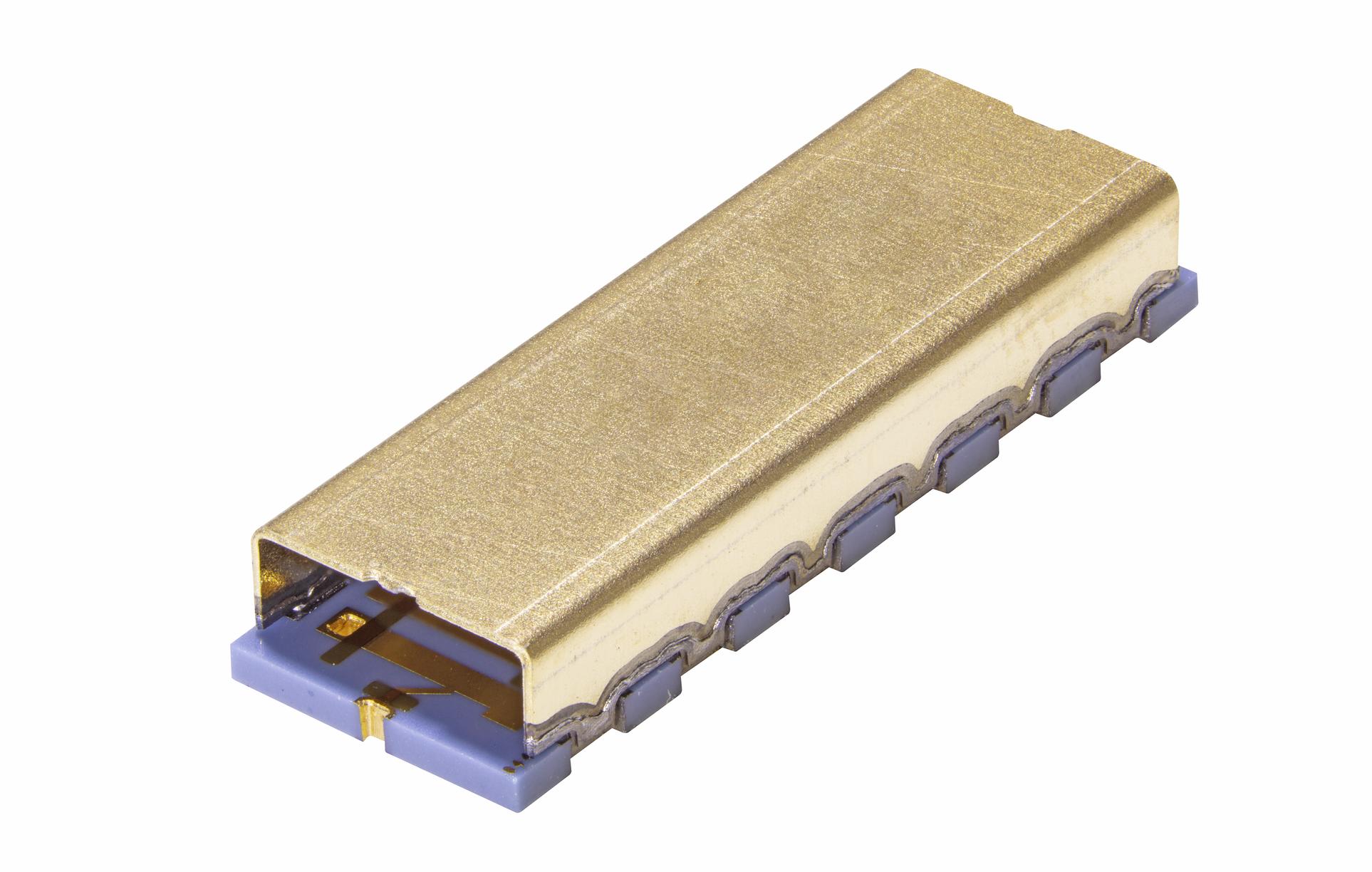

B148QF0S

RF Filter - Band Pass from Knowles — DLI – Dielectric Laboratories

Bandpass Filter, 15.0 GHz, 6.0 GHz BW

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Using high-K ceramic materials, the Knowles B148QF0S bandpass filter delivers highly repeatable, frequency stable performance over temperatures ranging from -55° to +125°C. Complete with integrated shielding, this SMT device is designed for use on most RF PWB materials for 12.0 to 18.0 GHz applications.

Part Number: B148QF0S
Manufacturer: Knowles — DLI – Dielectric Laboratories
Filtering Technology: Ceramic Substrate
Center Frequency: 15000 MHz
Bandwidth: 6000 MHz
Insertion Loss TYP: 3.6 dB
Return Loss Typ: 12.5 dB
Low Side Rejection: 40 dB
Low Side Rejection: 7500 MHz
High Side Rejection: 30 dB
High Side Rejection: 23000 MHz
Package: SMT
Length: 13.97 mm
Width: 3.81 mm
Height: 2.49 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	DEB-B148QF0S Knowles — DLI – Dielectric Laboratories	Evaluation board for B148QF0S ( Bandpass Filter )
