Part number B280LA0S Product Type RF Filter - Band Pass from Manufacturer Knowles — DLI – Dielectric Laboratories

Status: Standard | Data Sheet: pdf link image   | RoHS Compliance: Rohs Compliant

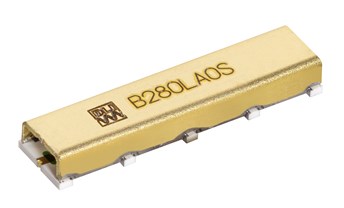

The Knowles B280LA0S 28.0 GHz Surface Mount Bandpass Filter is one of DLI’s catalog filters designed for the mmWave 5G. This filter utilizes DLI’s low loss temperature stable materials which offer  small size and minimal performance variation over temperature.  The catalog BPF’s are offered in a variety of frequency bands, which offers a drop in solution with highly repeatable performance.Features include Small Size, Fully Shielded Component, Solder Surface Mount Package, Moisture Sensitivity Level: MSL1 and Frequency Stability over Temperature

Part Number:
B280LA0S
Manufacturer:
Knowles — DLI – Dielectric Laboratories
Filtering Technology:
Ceramic Substrate
Center Frequency:
28000 MHz
Bandwidth:
1000 MHz
Insertion Loss TYP:
4 dB
Return Loss Typ:
10 dB
Low Side Rejection:
30 dB
Low Side Rejection:
26100 MHz
High Side Rejection:
30 dB
High Side Rejection:
30000 MHz
Package:
SMT
Length:
13.97 mm
Width:
3.56 mm
Height:
2.11 mm
No Content Available

Technical Inquiry Request for B280LA0S RF Filter - Band Pass

Fields marked with * are required.
Product Specifications For B280LA0S RF Filter - Band Pass
Design Information
Contact Information


Availability
In Stock
82
Need products sooner?
Quantity
Pricing
Quantity
Price
1 - 9
$119.33
10 - 49
$94.85
50 - 99
$90.30
100 - 249
$82.31
