Home>> RF Power Transistor>> BLF978PU

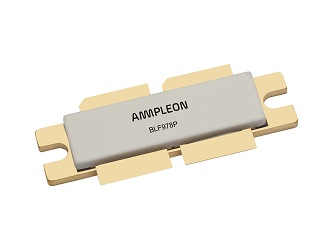

BLF978PU

RF Power Transistor from Ampleon

RF Power Transistor, 0.01 to 0.70 GHz, 1200 W, 24.5 dB, 50 V, SOT539A, LDMOS

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The BLF978P is Ampleon’s 1200‑watt LDMOS power transistor for particle accelerator, broadcast, and ISM applications spanning the HF to 700 MHz band, delivering exceptional ruggedness with up to 80% drain efficiency at 50‑volt operation.

Features and benefits:

Easy power control
Integrated ESD protection
Excellent ruggedness
High efficiency
Excellent thermal stability
Designed for broadband operation (10 MHz to 700 MHz)

Applications:

Particle Accelerators
Industrial, scientific and medical applications
Broadcast transmitter applications

Part Number: BLF978PU
Manufacturer: Ampleon
Frequency Min: 0.01 GHz
Frequency Max: 0.7 GHz
Output Power: 1200 W
Gain: 24.5 dB
% Typ Efficiency: 80.6
Supply Voltage: 50 V
Package: SOT539A
Process: LDMOS
Type: RF Power Discrete Transistors

No Content Available

Part Function	Part Number	Description
Evaluation Board	BLF978P/RFPOWERDEMO Ampleon	Evaluation Board for BLF978P
Complementary Product	BLP15H9S30Z Ampleon	RF Power Transistor, 0.001 to 2 GHz, 30 W, 22 dB, 50 V, SOT1482-1, LDMOS

Technical Inquiry Request for BLF978PU RF Power Transistor

Fields marked with * are required.

Product Specifications For BLF978PU RF Power Transistor

Part Number: BLF978PU Manufacturer: Ampleon USA Inc. Product Description: RF Power Transistor, 0.01 to 0.70 GHz, 1200 W, 24.5 dB, 50 V, SOT539A, LDMOS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

209

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$204.02

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
