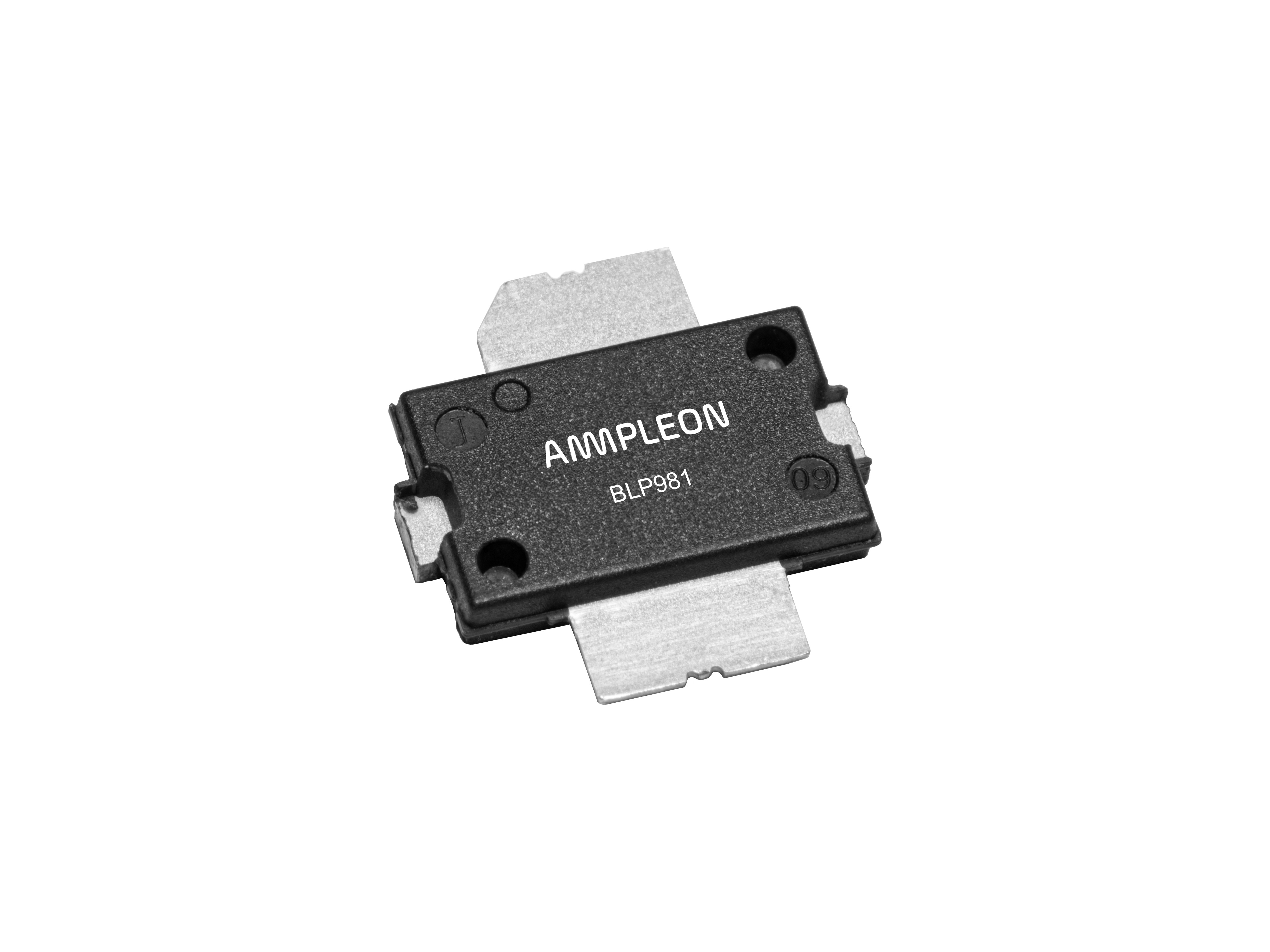

BLP981Z

RF Power Transistor from Ampleon

RF Power Transistor, 0.001 to 1.4 GHz, 170 W, 23.8 dB, 50 V, TO270, LDMOS

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

BLP981 is a 170 watt LDMOS transistor for broadcast, avionics and non-cellular communication applications. The excellent ruggedness of this device makes it ideal for digital and analog transmitter applications in the frequency range from HF to 1400 MHz.

Features and Benefits:

Designed for broadband operation
High efficiency
Integrated dual sided ESD protection
Excellent ruggedness
High power gain
Excellent reliability
Easy power control
Excellent stability

Applications:

Broadcast transmitters
Avionics applications up to 1400 MHz
Non-cellular communications

Part Number: BLP981Z
Manufacturer: Ampleon
Frequency Min: 0.001 GHz
Frequency Max: 1.4 GHz
Output Power: 170 W
Gain: 23.8 dB
% Typ Efficiency: 73
Supply Voltage: 50 V
Package: TO270-2F-1
Process: LDMOS
Type: RF Power Discrete Transistors

No Content Available

Part Function	Part Number	Description
Complementary Product	BLP981XY Ampleon	RF Power Transistor, 0.001 to 1.4 GHz, 170 W, 23.8 dB, 50 V, TO270, LDMOS
