C2AG23

Circulators and Isolators from Sonoma Scientific Inc.

Circulator, 2.7 to 3.1 GHz, 20 dB Isolation, 0.2 dB IL, Drop-In

Status: Standard | Data Sheet:

| RoHS Compliance:

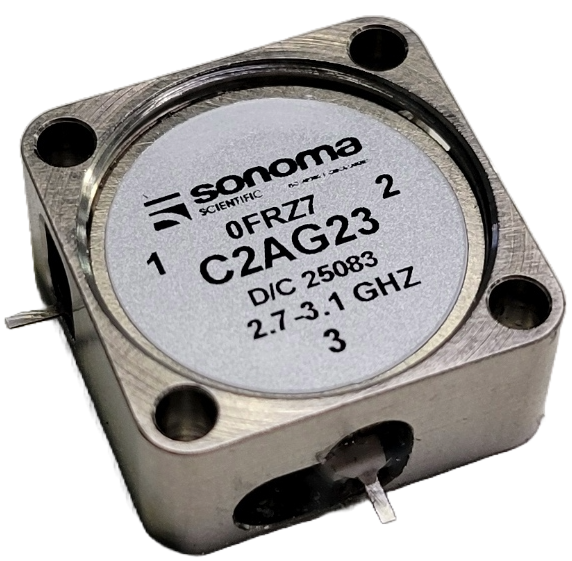

The Sonoma Scientific C2AG23 is a 2.7 to 3.1 GHz circulator built for high-efficiency RF systems that demand reliability, low loss, and robust power handling. Designed for effortless integration, the C2AG23 delivers exceptional electrical performance in a compact, drop in package.

Features and Benefits:

20 dB min isolation for clean, dependable signal separation
0.2 dB max insertion loss ensuring maximum system efficiency
VSWR: 1.22:1 max, optimized for stable operation and minimal reflection
Forward power handling of 75 W avg / 750 W peak
Operating Temp: +10°C to +40°C
Compact Size: 0.75" × 0.75" × 0.34"

Target Applications:

Military radar
Weather radar
Military communications
Medical - MRI & CT
Test/Lab Equipment

Part Number: C2AG23
Manufacturer: Sonoma Scientific Inc.
Type: Circulator
Min Frequency: 2700 MHz
Max Frequency: 3100 MHz
Insertion Loss Typ: 0.2 dB
Isolation Typ: 20 dB
CW Power: 75 W
Peak Power: 750 W
Reverse Power: 75 W
Package Style: Drop-in/Flanged
Temperature Range: +10 to +40 °C
