Home>> Amplifier>> CMX902QT8

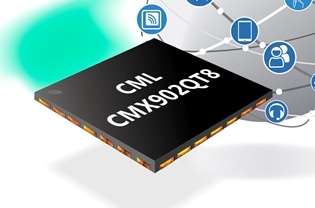

CMX902QT8

SuRF RF from CML Microcircuits

Amplifier, RF Power, 130 to 700 MHz, 2.8 W, 39 dB, 2.5 to 6 V, 28 pin WQFN

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

CML Microcircuits' CMX902 is a three-stage wideband, high gain, and high efficiency RF Power Amplifier IC operating over 130MHz to 700MHz. The device is ideally suited for use in VHF and low UHF radio applications such as data modules, Marine VHF communications, general purpose low power RF transmitters and radio applications used in Industrial Internet of Things (IIOT) systems. High power added efficiency is a key feature of this device, supporting low voltage battery powered applications.
The first and second stages of the amplifier operate in a class-A and class-AB mode respectively, and the third stage operates in class-C mode for maximum efficiency. Input and output matched circuits are implemented via external components and therefore can be adjusted to obtain maximum power and efficiency at the desired operating frequency.
The CMX902 is available in a small footprint 5mm x 5mm low thermal resistance 28-pin WQFN package making it ideal for low power and small form factor applications.

Part Number: CMX902QT8
Manufacturer: CML Microcircuits
Type: RF Power MMIC
Frequency Min: 0.13 GHz
Frequency Max: 0.7 GHz
Gain: 39 dB
Supply Voltage \ Vd Min: 2.5 V
Supply Voltage \ Vd Max: 6 V
Package: QFN 5x5mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	EV9021-160 CML Microcircuits	Evaluation Kit for CMX902, 150-170MHz
Evaluation Board	EV9021-435 CML Microcircuits	Evaluation Kit for CMX902, 400-470MHz
