CMX90A004Q7

SuRF RF from CML Microcircuits

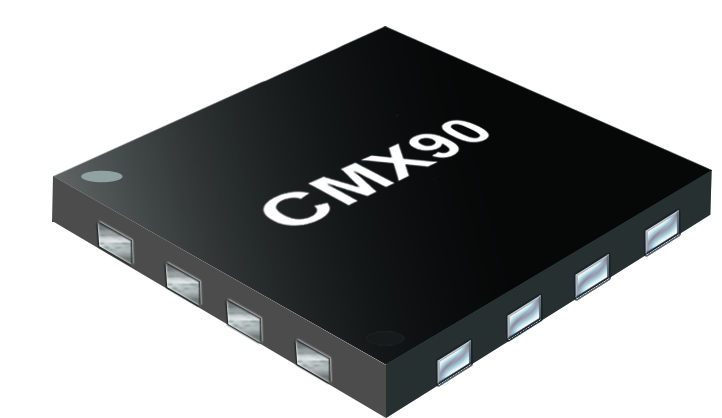

Power Amplifier, 860 to 960 MHz, 2 W, 30 dB, 4 x 4 mm VQFN-16

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The CMX90A004 is a two-stage, fully matched MMIC PA delivering +32.5dBm of saturated power for use in the 860 – 960 MHz frequency range, applicable to license-free bands.

The device is optimised for maximum efficiency at collector voltages of 2.7–4.5V, making it suitable for systems operating from a single-cell Li-Ion battery.

CMX90A004 is highly integrated for ease of use, minimising external component count and reducing board area. RF input and output matching is incorporated on-chip, as well as active bias circuitry and an input DC-blocking capacitor.

Using advanced GaAs HBT technology to provide a combination of high efficiency and gain, the CMX90A004 is intended as a high-power final stage ISM band PA in wireless applications.

Features

Frequency range 860 – 960 MHz
Supply voltage 2.7 – 4.5 V
Output power 32.5 dBm @ 3.6 V
Input and output matched to 50 Ω
Small signal gain 30 dB
High PAE of 49%
Shut-down and output power control

Part Number: CMX90A004Q7
Manufacturer: CML Microcircuits
Type: Amplifiers
Frequency Min: 0.86 GHz
Frequency Max: 0.96 GHz
Psat: 32.5 dBm
Gain: 30 dB
Supply Voltage \ Vd Min: 2.7 V
Supply Voltage \ Vd Max: 4.5 V
Process: GaAs
