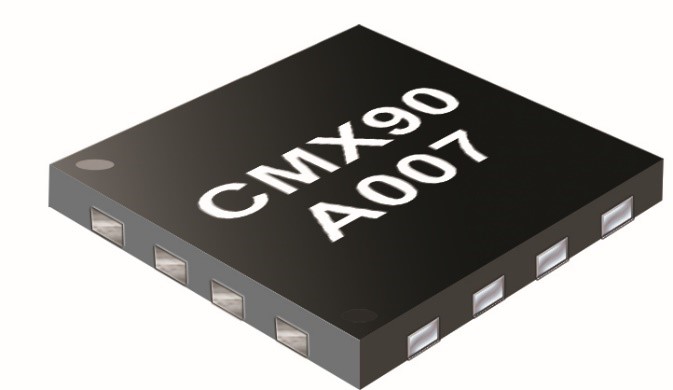

The CMX90A007 is a high gain two-stage GaAs HBT driver amplifier in a plastic QFN package, delivering +33.5 dBm (2.2 W) of output power with >55 % efficiency at 435 MHz and 7.4 V.

CMX90A007 requires external matching at both input and output to optimize performance for each application and frequency band.

Wide supply voltage range of 6 – 9.5 V make it suitable for a variety of applications and enable direct connection to dual-cell Lithium batteries. The integrated active bias circuit and wideband interstage match, ease design effort and minimize external components and PCB area.

CMX90A007 can be used as a stand-alone final stage PA or driver stage for the CMX90A009.

Features

• Frequency range 136 – 1000 MHz
• Supply voltage 6 – 9.5 V
• P3dB +33.5 dBm @ 435MHz, Vcc = 7.4V
• Small signal gain 26 dB
• High collector efficiency >55 % @ P3dB
• On-chip active bias and wideband interstage match
• OIP3 +45 dBm @ +27 dBm/tone @ 435 MHz
