Home>> IC: Wireless Data>> CMX994EQ4

CMX994EQ4

CML Microcircuits (USA) Inc. from CML Microcircuits

RF Direct Conversion Receiver IC

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

The CMX994/CMX994A/CMX994E/CMX994G are a family of direct conversion receiver ICs with very high IIP2 performance for use in zero IF, near-zero IF and low IF receivers. Power consumption is a key factor in many applications; PowerTrade™ provides the ability to dynamically select power consumption vs. performance modes to optimise operating trade-offs. The latest addition, the CMX994G, offers all the benefits of CMX994E with guaranteed performance down to 30MHz

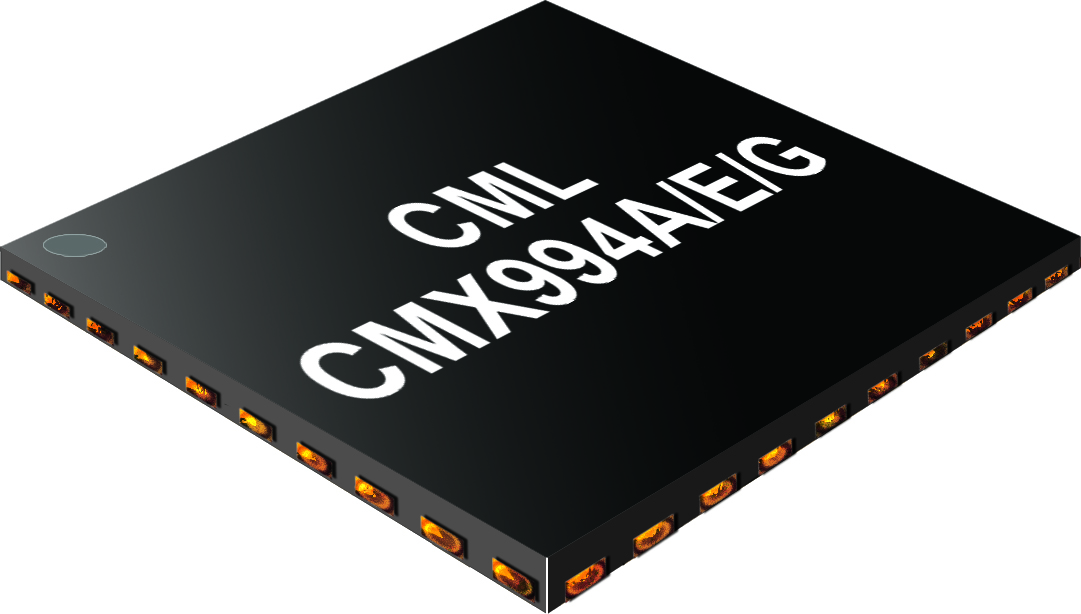

The CMX994/A/E/G operates from a single 3.3V supply over a temperature range of –40°C to +85°C and are available in a small 40-pin VQFN (Q4) package.

The CMX994/CMX994A/CMX994E/CMX994G Advantage

Highest integration for an RF Rx function
On-chip LNA with digital gain control
Minimum of external components
Smallest PCB area requirement
Overall lowest cost Rx solution
Precise filtering for digital compensation
Can be used in zero-IF, near zero-IF and low IF systems
Compatible with CMX998 CFBL transmitter

Part Number: CMX994EQ4
Manufacturer: CML Microcircuits

No Content Available

Part Function	Part Number	Description
Evaluation Board	DE9941A-435 CML Microcircuits	SDR demonstrator for Industrial IoT modem applications
Replacement	CMX994EFQ4 CML Microcircuits	RF Direct Conversion Receiver IC
