Part number DE9180-2 Product Type Evaluation Board from Manufacturer CML Microcircuits

Status: Featured | Data Sheet: pdf link image   | RoHS Compliance: Rohs Compliant

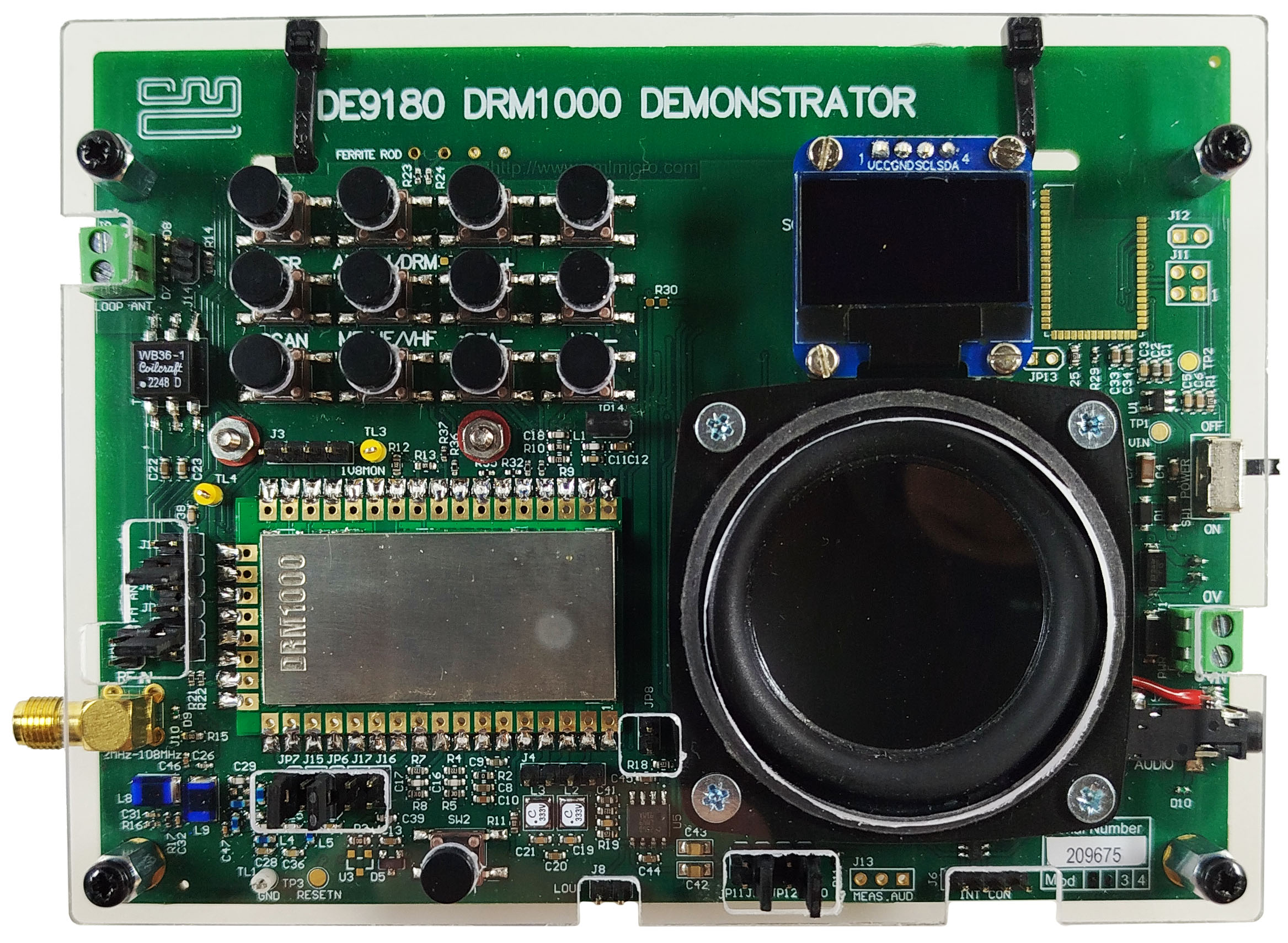

The DE9180 is a compact demonstration platform that allows the functionality of the DRM1000 AM/FM Broadcast Receiver Module to be easily demonstrated. The DRM1000 module is supplied soldered directly to the PCB, as it would be in an end product.


The DE9180 provides a full complement of inputs, outputs, and controls to allow the performance of the DRM1000 to be assessed. Included are external power supply connector, headphone socket, connection for an external HF/VHF antenna,connection for an external MF antenna, loudspeaker, battery holder and 16x2-character OLED display. Also included is a 12-button keypad that provides for adjustment of volume level (up and down), station selection, frequency band selection,four pre-set station memory buttons, frequency scan, and other user functions.

Contents

1 x DE9180 unit
2 x DRM1000 modules
1 x 1.2m telescopic whip antenna

Part Number:
DE9180-2
Manufacturer:
CML Microcircuits
No Content Available

Technical Inquiry Request for DE9180-2 Evaluation Board

Fields marked with * are required.
Product Specifications For DE9180-2 Evaluation Board
Design Information
Contact Information


Availability
In Stock
2
Need products sooner?
Quantity
Pricing
Quantity
Price
1 - 99
$194.00
Request a Pricing Quote for greater quantities
Product Notices
No Current Notices
