Home>> RF Modules>> DRM1000

DRM1000

CML Microcircuits (USA) Inc. from CML Microcircuits

Broadcast Receiver Module covering MF, HF and VHF Band II

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

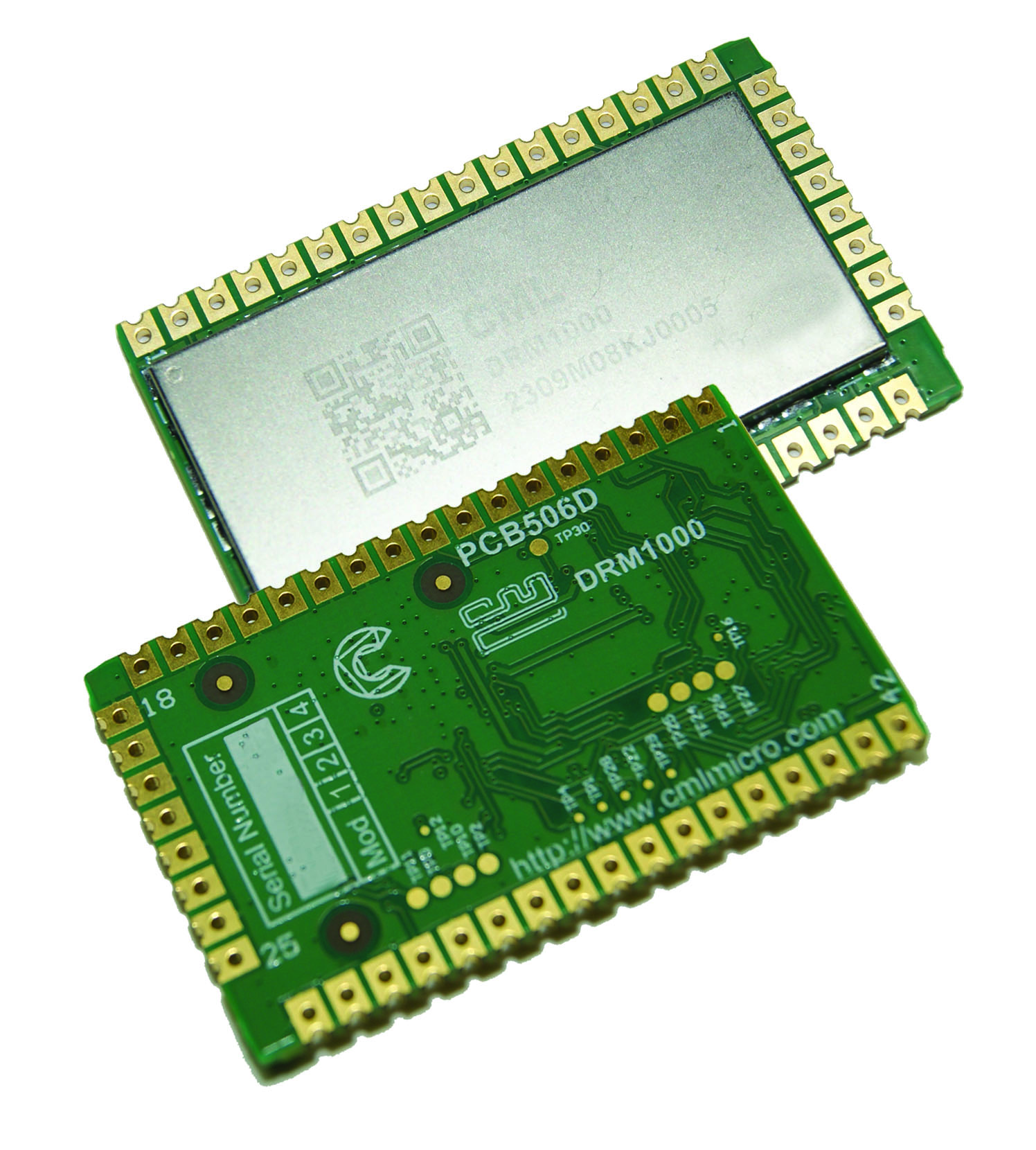

The DRM1000 broadcast receiver module is a complete ‘antenna-to-audio’ solution designed for easy integration by manufacturers of broadcast receivers. Full software functionality is included for high-performance reception of AM,FM, and DRM (DRM30 and DRM+) broadcasts worldwide, across MF, HF and VHF (Band I and II). The module software supports a simple user interface comprising a small, low-cost display and push-buttons. Support is also provided for an external microcontroller via a serial interface, to provide an extended user interface and functions if desired.

Features

• Pre-programmed, ready-to-use module
• Easily integrated into a wide range of products
• Covers broadcast bands from 530 kHz to 108 MHz
• Direct support for ferrite and telescopic antennas
• 1 W amplifier for small loudspeaker
• I2S digital and analogue line outputs
• Low-power consumption from 3 V battery
• Low-cost, high-performance

• Receives Digital Radio Mondiale (DRM30 / DRM+)
• Receives AM and FM
• Conforms to EN 303-345 specification
• Designed to meet DRM Consortium Minimum
Receiver Requirements
• Includes licence for all software and essential IPR

Part Number: DRM1000
Manufacturer: CML Microcircuits

No Content Available

Part Function	Part Number	Description
Design Kit	DE9180-2 CML Microcircuits	Demonstration Kit of DRM1000

Technical Inquiry Request for DRM1000 RF Modules

Fields marked with * are required.

Product Specifications For DRM1000 RF Modules

Part Number: DRM1000 Manufacturer: CML Microcircuits Product Description: Broadcast Receiver Module covering MF, HF and VHF Band II

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 99

$35.00

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
