Home>> RF Antenna>> ED2-0011-040000

ED2-0011-040000

RF Antenna from ED2

RF Antenna, Dual, Linear Polarised, 28 GHz, 1 GHz, BW, SMPM connectors

Status: Standard | Data Sheet:

| RoHS Compliance:

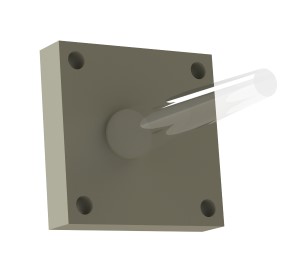

The ED2 28 GHz dual linear polarized antenna is a high-performance, low cost, GPPO/SMPM component. No calibration or tuning is required, you just plug in and go. This antenna represents an alternative to phased array antennas which require processing circuitry and calibration routines. The Dielectric Waveguide Antenna requires less power than phased-array antennas with comparable performance and simplicity of installation and is ideal for use in applications such as 5G wireless, radar, jammer and satcoms.

Dual Linear Polarized Antenna • >20dB cross polarisation isolation • 28 GHz center frequency • 1 GHz bandwidth • 22.5° - 3 dB beamwidth • Frequency stable over temperature • Impedance: 50Ω • Operating Temp: -55°C to +125°C • Connectorized SMPM package • Selectable gain and beamwidth options

Part Number: ED2-0011-040000
Manufacturer: ED2
Market Status: MMW
Number of Bands: Single
Gain: 9 dB
Center Frequency 1: 28000 MHz
Bandwidth 1: 1000 MHz

No Content Available
