Home>> Evaluation Board>> EV90A006

EV90A006

SuRF RF from CML Microcircuits

EVB for CMX90A006

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

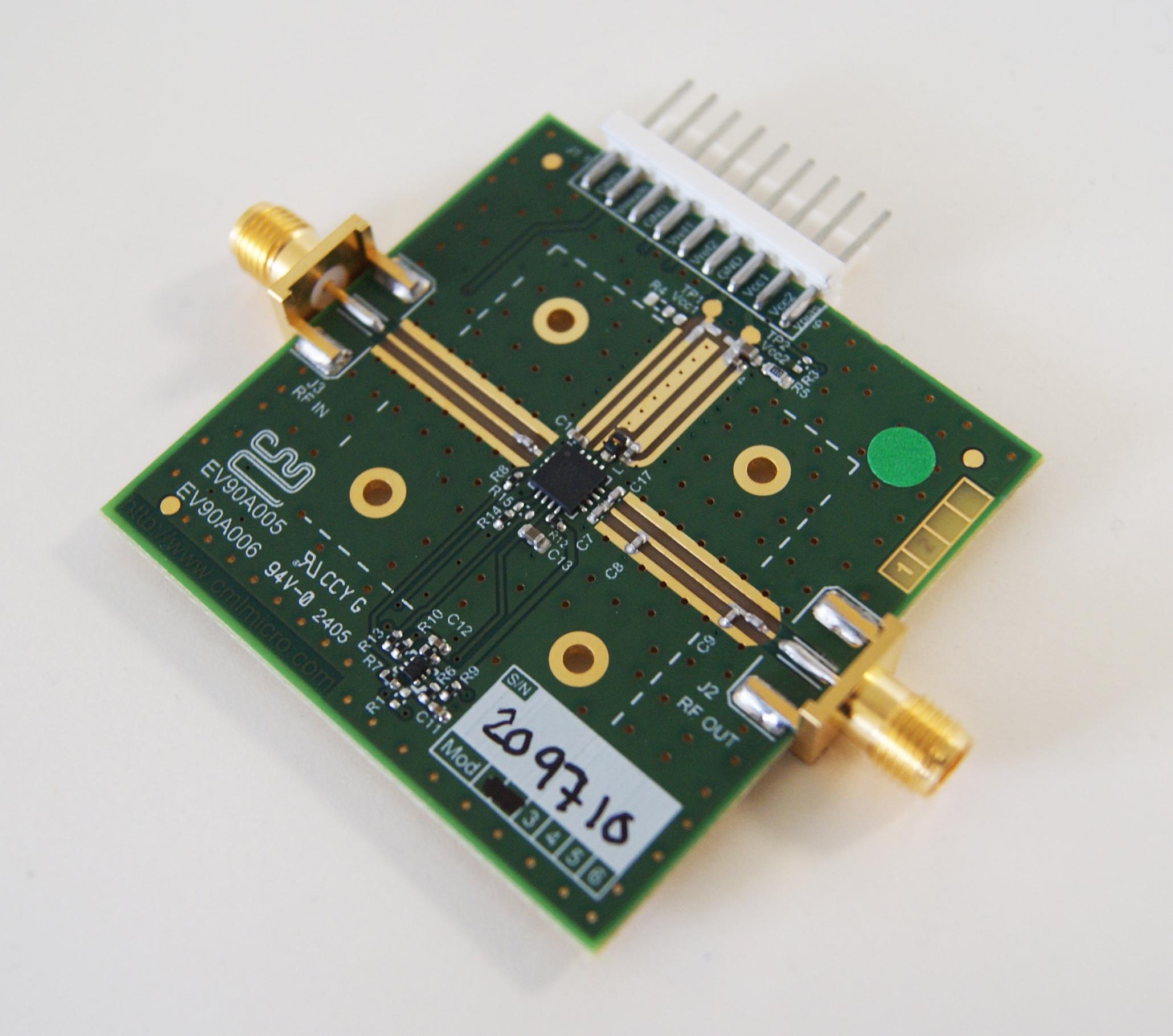

The EV90A006 is the evaluation board for CMX90A006.

The CMX90A006 is a two-stage linear RF power amplifier in QFN package, delivering +33 dBm of output power at 1 dB gain compression over the frequency range of 860 – 930 MHz, applicable to license-free bands.

Operating over a wide supply voltage range of 2.5 – 5.25 V to enable system level optimization and suitable for single cell Lithium batteries.

CMX90A006 is highly integrated for ease of use, reducing external component count and board space. The RF input is internally matched to 50 Ω, whilst the output match is implemented externally to optimize performance for each application.

The use of InGaP HBT process technology provides excellent reliability and balance between efficiency, gain and linearity. CMX90A006 is intended as a final stage ISM band PA in wireless applications.

Part Number: EV90A006
Manufacturer: CML Microcircuits

No Content Available

Part Function	Part Number	Description
Evaluation Board	CMX90A006Q7 CML Microcircuits	Power Amplifier, 860 to 930 MHz, 2 W, 33 dB, 4 x 4 mm VQFN-16

Technical Inquiry Request for EV90A006 Evaluation Board

Fields marked with * are required.

Product Specifications For EV90A006 Evaluation Board

Part Number: EV90A006 Manufacturer: CML Microcircuits Product Description: EVB for CMX90A006

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

$45.76

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
